Aumark S BJ1065

Powered by Cummins – Driven by Foton

The Cummins powered Aumark S BJ1065 is available in two wheelbases – 2800mm & 3360mm – and, with a GVM of 5995kg, it can be driven on a standard car license making it a perfect solution for any job.

The BJ1065 can be ordered with one of our Foton Job Ready solutions which include: Flat Deck, Tipper, Box Body, Chiller and Curtainsider.

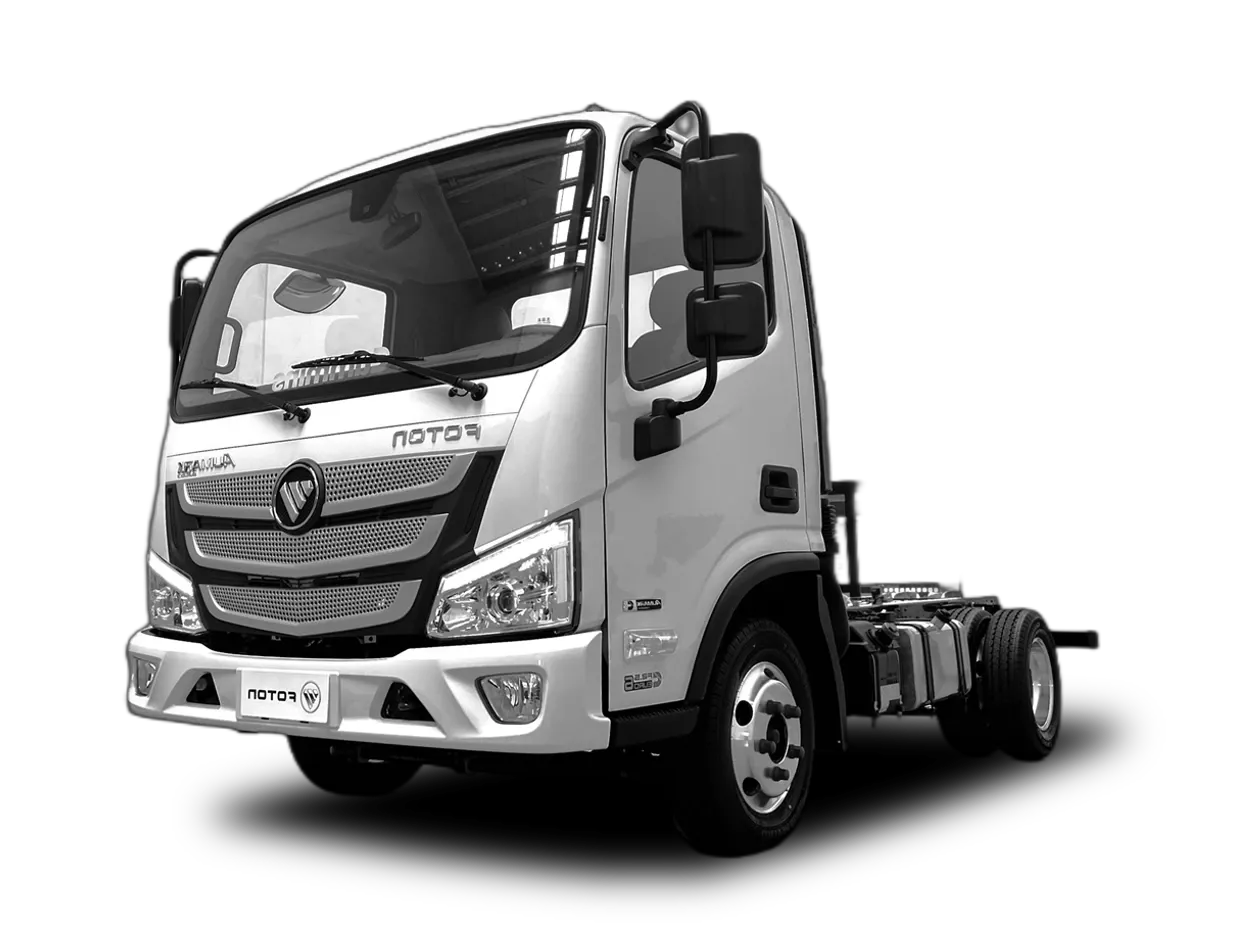

All our models can also be provided in a cab chassis format, allowing for locally built custom body solutions. To enquire about availability, click here.

Make an Enquiry
BJ1065
Gvm
GVM/GCM

5995kg/9495kg

power
Power

110kW/2900rpm (Cummins)

Torque
Torque

400Nm/1500-2900rpm

Transmission
Transmission

ZF 5-speed AMT / MT

Brakes
Brakes

Airbrakes

Emission
Emission Standard

Euro 6e

Electric
Vehicle Electrics

24V

Variants
Job Ready™ Variants

Tipper, Tray, Box Body, Chiller & Curtain Side

SPECIFICATIONS

Overview

Overview
  • GVM: 5995kg
  • GCM: 9495kg
  • Wheelbase: 2800mm (AMT/MT) | 3360mm (AMT only)
  • Axle Configuration: 4 x 2 Rigid
  • Transmission: ZF 5-speed AMT / MT
  • Engine Type: Cummins F2.5
  • Fuel Type: Diesel
  • Cab Type: City Cab (ECE R-29 Certified)
  • Number of Seats: 3
  • Emission Standard: Euro 6e
  • Maximum Power: 110kW @ 2900rpm
  • Maximum Torque: 400Nm @ 1500-2900rpm
  • Brake System: Air

Performance

Engine and Transmission
  • Engine Type: Cummins F2.5EVIE149
  • Emission Certification: Euro 6e
  • Cylinder Arrangement: 4 x In-line with Turbo Intercooler
  • Displacement: 2498cc
  • Maximum Power: Cummins 110kW @ 2900rpm
  • Maximum Torque: 400Nm @ 1500-2900rpm
  • Fuel Injection System: Bosch Common Rail
  • Driving Modes: Economy/Power, Crawl & Snow (AMT only)
  • Engine Features: Idle Up (via steering wheel cruise control)
  • Fuel Type: Diesel
  • Fuel Tank: 80L Aluminium Alloy (SWB) | 120L Aluminium Alloy (MWB)
  • Transmission Type: ZF 5AU408TO 5-Speed AMT / ZF 5S408TO 5-Speed MT
Axle, Brakes and Suspension
  • Brake System: Air + ABS, ASR, ESC, EBS, LDWS, HAS, EPB*, ABH*, AEBS*, FCW*
    *(AMT only)
  • Air Tank Material: Aluminium Alloy
  • Brake Type – Front / Rear: Disc | Drum
  • Park Brake: Electronic Air (AMT only)
  • Suspension – Front: Multi-leaf + Stabiliser Bar
  • Suspension – Rear: Disc (AMT) / Drum (MT)
  • Shock Absorbers: Double Acting
  • Front Axle Type: Forged & Stamped I-Beam
  • Front Axle Max. Capacity: 2640kg
  • Front Axle Tyre Capacity: 2120kg
  • Rear Axle Type: Banjo (Stamped & Welded Housing)
  • Rear Axle Max. Capacity: 4950kg
  • Rear Axle Tyre Capacity: 4240kg
  • Rear Axle Ratio: 4.3 : 1 / 4.875 : 1 (Tipper only)
  • Turning Circle: 11.2m (SWB) | 13.2m (MWB)
Wheels & Tyres
  • Wheel Rims: Aluminium Alloy
  • Wheel Size (Ø x W): 16” x 5.5”
  • Tyre Size: 205/75 R16
  • Spare Wheel: Yes

Technology

Connectivity
  • Bluetooth®: Yes (Hands)
  • Connectivity & Charging: 2 x 5V (21A) / 1 x USB Port / 1 x SD Slot
  • Auxilary Power Outlet: 2 x 24V (15A)
Audio
  • Radio: AM/FM
  • Speakers: 2
  • Display Screen: LCD Touchscreen

Safety

Foton Safety Logic
  • Electronic Air Park Brake (EPB): Yes (AMT only)
  • Air Park Brake: Yes (MT only)
  • Day Time Running Lights (DRL): Yes
  • Front & Rear Fog Lights: Yes
Active Safety Systems
  • Anti-lock Braking System (ABS): Yes
  • Lane Departure Warning (LDWS): Yes
  • Anti-Slip Regulator (ASR): Yes
  • Hill Start Assist / Auto-Hold: Yes
  • Electronic Stability Program (ESP): Yes
  • Autonomous Emergency Braking (AEB): Yes (AMT only)
Parking Assistance
  • Reverse Camera: Yes
  • Reverse Sensors: Yes (specific Job ReadyTM variants only)
  • Reverse Buzzer: Yes
Other Safety Features
  • SRS Airbag: Yes x 2 (AMT only)
  • Rearview Camera: Yes (Alloy Box, Curtainside & Fridge only)
  • Drivers Seatbelt Warning: Yes
  • Doors Unlocked Warning: Yes

Exterior

Design Features
  • Cab Type: City Cab (ECE R-29 Certified)
  • Cab Tilt: Forward Control Manual Tilt Function
Front Lighting
  • Headlights: Auto Sensing, Adjustable Integrated Halogen
  • Front & Rear Fog Lights: Yes
  • Day Time Running Lights (DRL): Yes (LED)
  • Side Turn Light + Corner Lamp: Yes
  • Roof Clearance Lights: Yes (LED)
Other Features
  • Exterior Mirrors: 5 (4 x Side / 1 x Curb)
  • Exterior Storage: Toolbox (Tipper & Curtainsider only)
  • Illuminated Door Step: Yes (LH & RH)
  • Other Accessories: Air Deflector (Box Body, Curtain & Chiller only)

Interior

Seating
  • Seating: 3
  • Seat Material: Fabric
  • Seat Adjustment: Manual Slide and Recline Adjustments
Convenience Features
  • Steering Wheel Controls: Audio/Bluetooth/Cruise Control
  • Connectivity & Charging: 2 x 5V (21A) / 1 x USB Port / 1 x SD Slot
  • Auxilary Power Outlets: 2 x 24V (15A)
  • Internal Storage : Centre Console, Overhead, Door & Glovebox (MT only)
  • Doors & Windows: Remote Central Locking & Electric Windows
Instruments
  • Gauges: Speedometer with Odometer, Tachometer, Fuel Level, AdBlue Level, Water Temperature.
  • Digital Information Display: Yes
Other Features
  • Height Adjustable Seat Belt: Yes (Driver-side only)
  • Adjustable Steering Column: Yes (Telescopic & Tilt)
  • Engine Idle Up Function: Yes (Steering Wheel Cruise Control Button)

Dimensions & Weight

Dimensions
  • Wheelbase: 2800mm (SWB) | 3360mm (MWB)
  • Overall Length: 5400mm (SWB) | 5995mm (MWB)
  • Overall Width: 1925mm
  • Overall Height: 2230mm
  • Front Wheel Track: 1590mm
  • Rear Wheel Track: 1615mm (MT) / 1710mm (AMT)
  • Rear Frame Height: 721mm
Weights
  • Kerb: 2220kg (SWB) | 2270kg (MWB)
  • GVM: 5995kg
  • GCM: 9495kg
Chassis
  • Chassis Frame: Longitudinal Beam High Strength Steel
  • Dimensions: 180 x 65 x 4.5mm
  • Rear Frame Width: 800mm (AMT) / 750mm (MT)
  • Tensile Strength: 510-650MPa

Warranty

Warranty
  • Standard Vehicle Warranty: 3 Years/160,000kms (T&C’s apply)
  • Job Ready™ Body Warranty: 1 Year (T&C’s apply)

Choose Your Foton Job Ready™

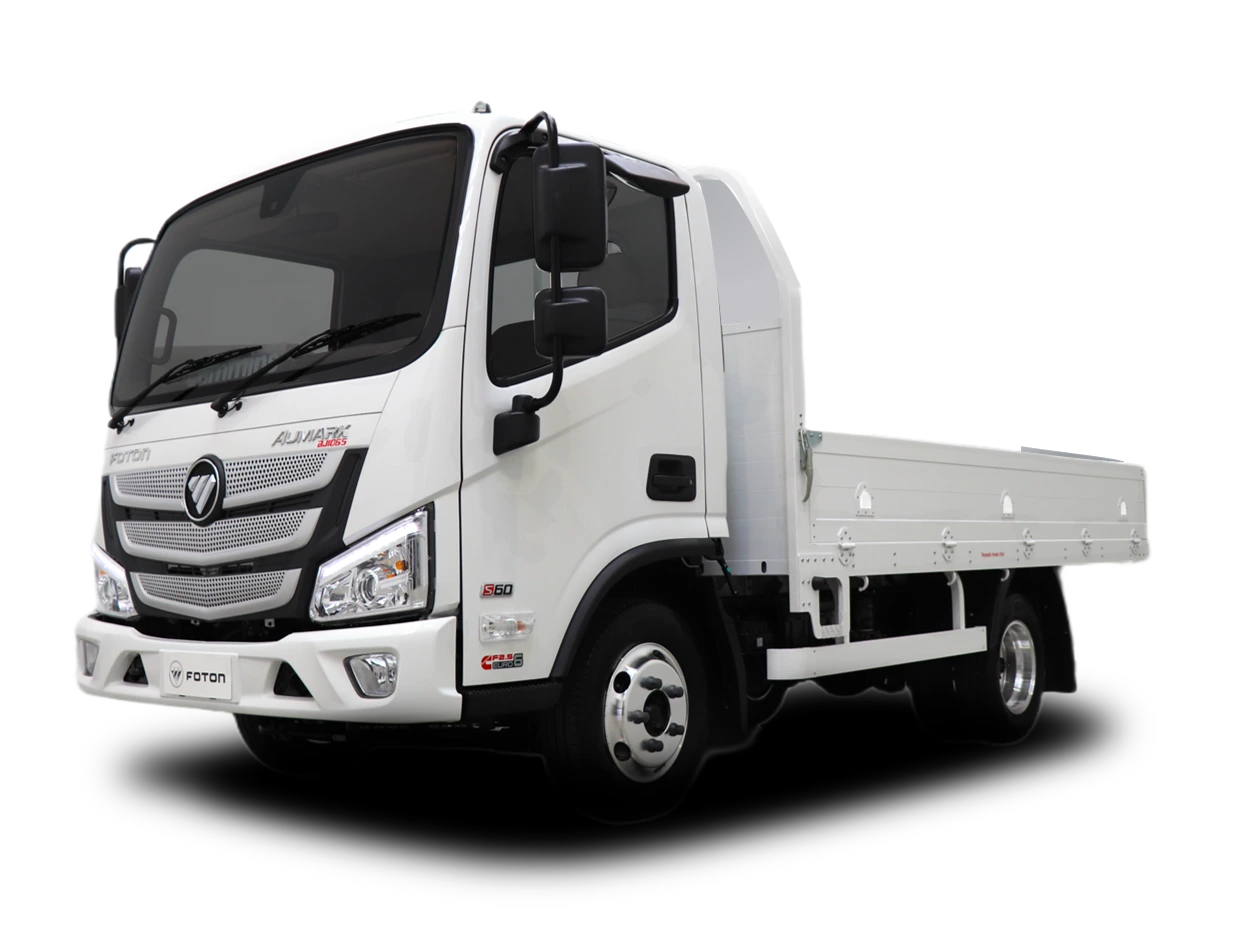

Flat Deck

Features
  • Powdercoated Finish
  • Four Corner Steps
  • Drop-sides (LH & RH)
  • Rope Holes (each side)
  • Stainless Steel Rail Caps
  • Light Cover (Tarp) Hooks
  • Drive on a Class 1 Licence
Specifications (2800 WB | 3360 WB)
  • Kerb Weight: (2540kg | 3230kg)
  • Max Payload: (3455kg | 2765kg)
  • Inner Length: (3640mm | 4060mm)
  • Inner Width: 2090mm
  • Inner Height: 400mm
  • Tow Rating: 3500kg
Options
  • Certified Hooks/Rails
  • Certified Towbar
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Trans-Tex Ply Deck
  • Parkbrake Alarm

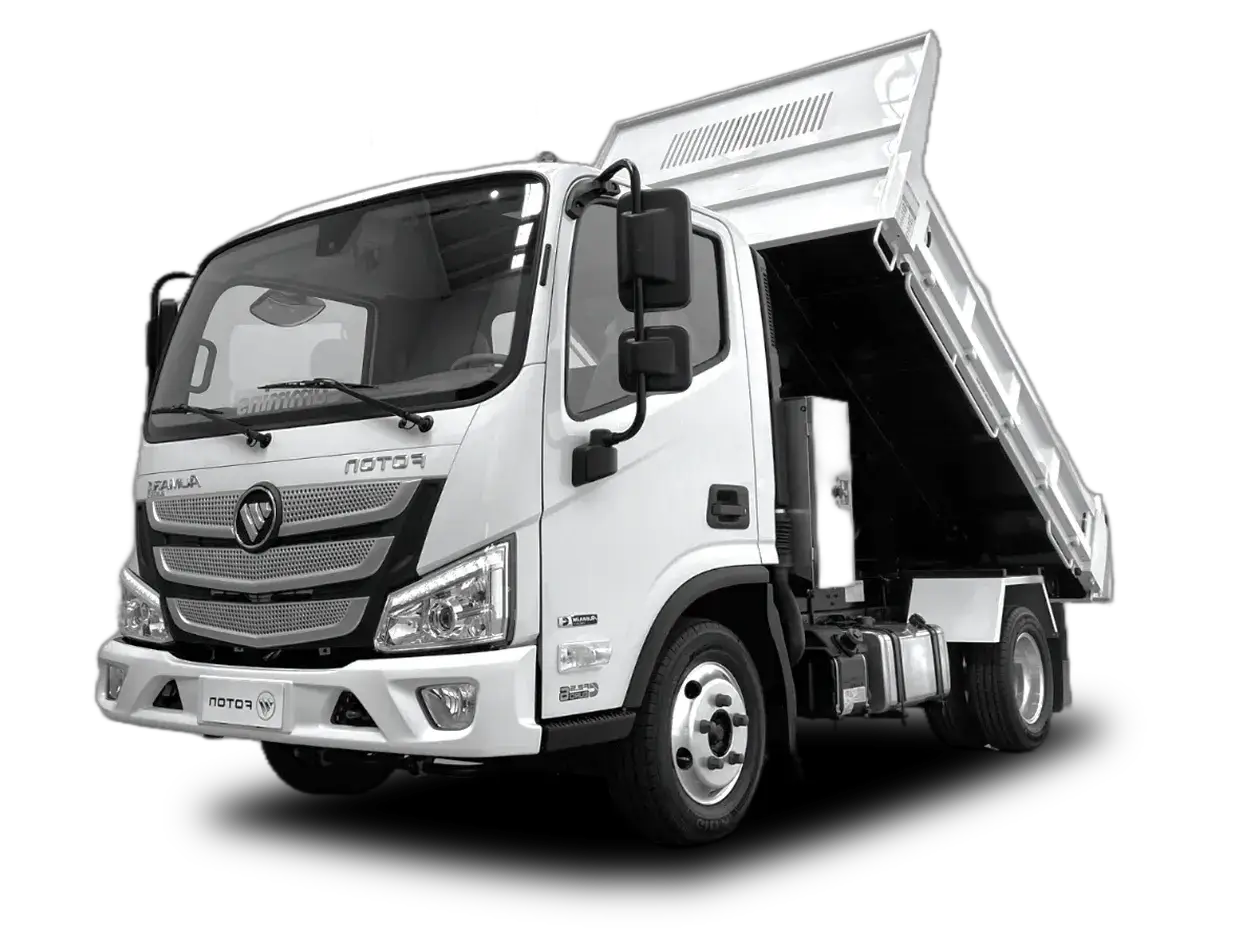

Tipper

Features
  • Push Button Activation
  • Cordless Remote Control
  • Underbody Hoist with Subframe
  • Steel Toolbox
  • Deck Lock
  • Drop-side Tray (LH & RH)
  • 3-way Opening Tailgate
  • Stainless Steel Rail Caps
  • Provision for Chain Spreader
  • Light Cover (Tarp) Rails
  • Drive on a Class 1 Licence
Specifications (2800 WB | 3360 WB)
  • Kerb Weight: (3150kg | 4080kg)
  • Max Payload: (2795kg | 4415kg)
  • Inner Length: (3000mm | 3200mm)
  • Inner Width: 2150mm
  • Inner Height: 370mm
  • Tow Rating: 3500kg
Options
  • Certified Hooks/Rails
  • Certified Towbar
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Parkbrake Alarm

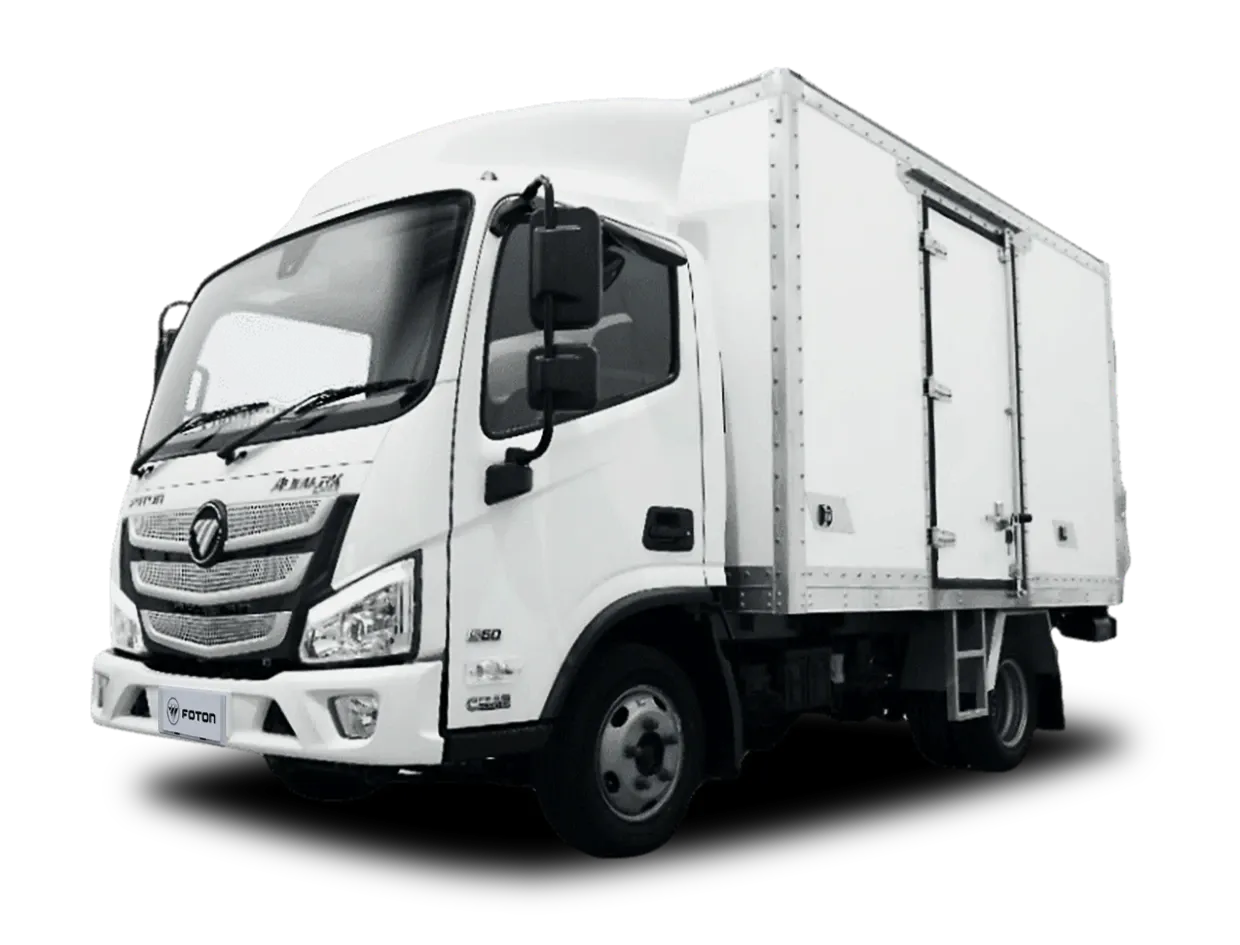

Box Body

Features
  • Powdercoated Finish
  • Aluminium Alloy Floor
  • Internal Battons & Rails
  • Double Rear Doors
  • Single Side Door
  • Stainless Locking Bars
  • Side Steps
  • Rearview Camera
  • Air Deflector
  • Drive on a Class 1 Licence
  • 3-Point Contact System
Specifications (2800 WB | 3360 WB)
  • Kerb Weight: (3005kg | 4080kg)
  • Max Payload: (2990kg | 4415kg)
  • Inner Length: (3450mm | 4245mm)
  • Inner Width: 1970mm
  • Inner Height: 1910mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Carpeted Battons
  • Parkbrake Alarm

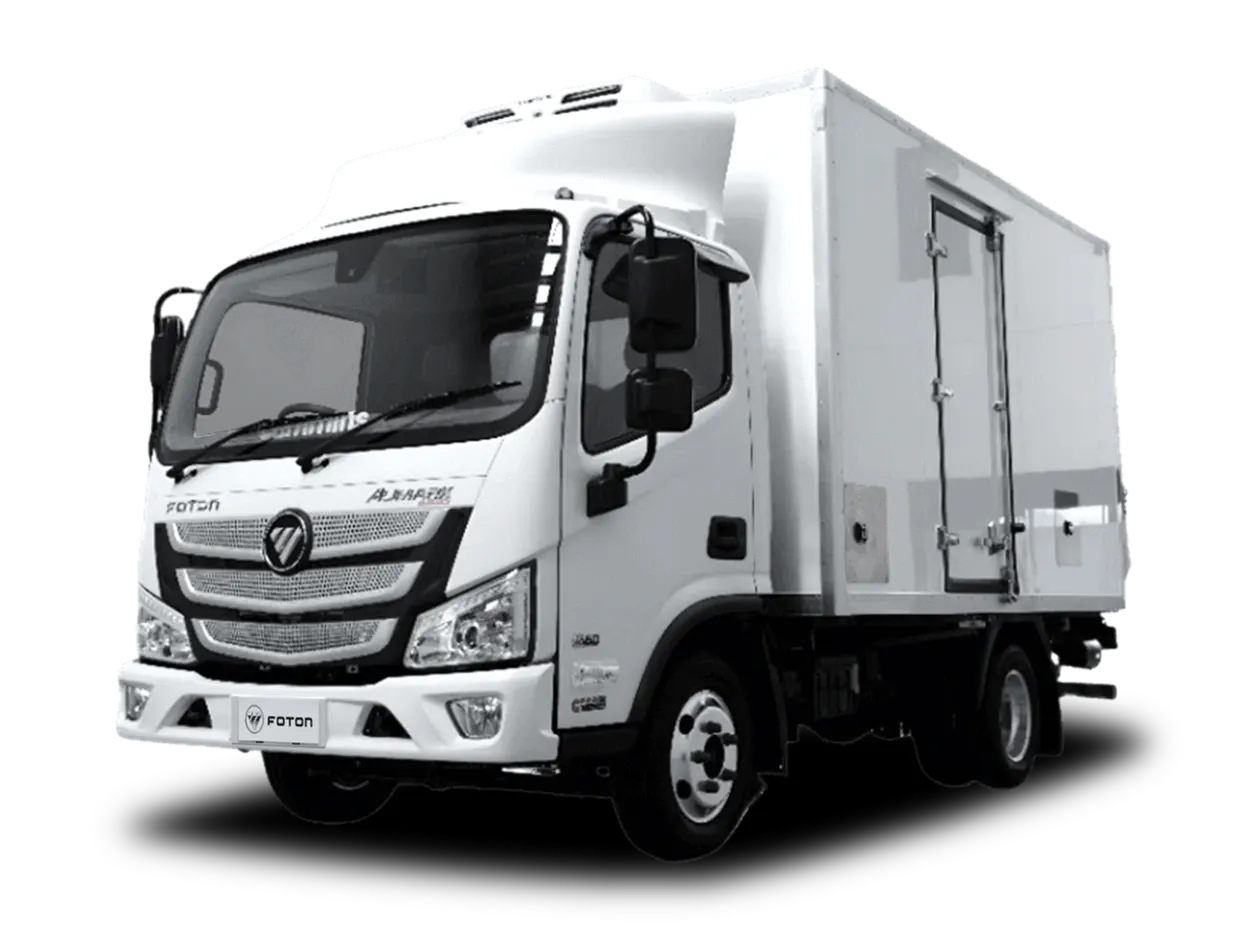

Refrigerated

Features
  • Thermo King RV-380
  • Aluminium Alloy Floor
  • Side Protection Plates
  • 3 Rows of Cargo Tracks
  • Double Rear Doors
  • Single Side Door
  • Stainless Locking Bars
  • Retractable Side Steps
  • Rear Curtain Wall
  • Rearview Camera
  • Air Deflector
  • Drive on a Class 1 Licence
Specifications (2800 WB | 3360 WB)
  • Kerb Weight: (3200kg | 4425kg)
  • Max Payload: (2795kg | 4070kg)
  • Inner Length: (3430mm | 4200mm)
  • Inner Width: 2080mm
  • Inner Height: 1920mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Partitioning Wall
  • Stand-by Power
  • Parkbrake Alarm

Curtainsiders

Features
  • White PVC Curtains
  • Trans-Tex Ply Floor
  • Certified Tie Rails
  • Underbody Toolbox
  • Rearview Camera
  • Air Deflector
  • 6 Pallet Floor Space
  • Drive on a Class 1 Licence
Specifications (2800 WB | 3360 WB)
  • Kerb Weight: (3140kg | 4000kg)
  • Max Payload: (2855kg | 4495kg)
  • Inner Length: (3900mm | 4300mm)
  • Inner Width: 2200mm
  • Inner Height: 2170mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Curtain Branding
  • Rear Solid Wall
  • Rear Roller Door
  • Rear Double Doors
  • Tail Lift (+/- Seal Kit)
  • Parkbrake Alarm

Traffic MGMT

Features
  • Certified Fall Arrest Beam
  • LED Roof Beacon
  • LED Grill Lights
  • LED Marker Lights
  • LED Deck & Step Lights
  • LED Arrowboard
  • Emergency Stop Buttons
  • Equipment Capacity x 70
  • Rearview Camera
  • Reverse Camera
  • Deck Camera
Specifications (3360 WB)
  • Kerb Weight: 3545kg
  • Max Payload: 2450kg
  • Inner Length: 3850mm
  • Inner Width: 2170mm
  • Inner Height: 2100mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Parkbrake Alarm
