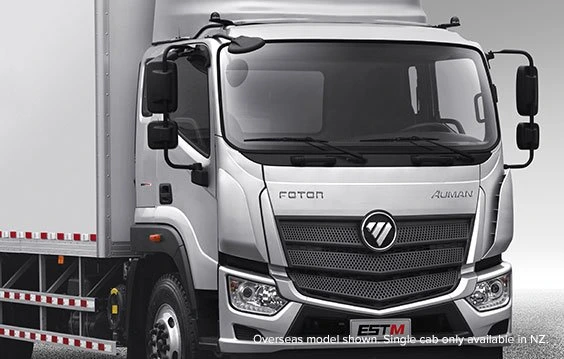

Auman D BJ1126

Powered by Cummins – Driven by Foton

The Auman D BJ1126 is built for versatility and strength, powered by a proven Cummins 4.5L Euro 6 engine and a ZF AMT transmission for smooth and efficient performance. It’s available across four wheelbase options – 4200mm, 4800mm, 5150mm, and 5750mm – and offers two GVM choices – 11,995kg or 13,650kg – giving operators the flexibility to match the truck to their specific payload requirements.

Comfort and reliability are at the core of the BJ1126, with a spacious cab and the latest technology to support drivers through long shifts. Inside, the cab provides a modern environment with driver and passenger climate, air-sprung Grammer seats, a comfortable day bed and integrated infotainment.

Choose from our Foton Job Ready range of bodies – Box Body, Tipper, Chiller, Curtainsider, Traffic Control or Recovery – or take advantage of the cab chassis format for a fully customised solution. Enquire about availability today and discover how the BJ1126 can work for your business.

Make an Enquiry
Models
Gvm
GVM/GCM

11,995kg / 20,000kg

power
Power

157kW/2300rpm

Torque
Torque

760Nm/1200-1800rpm

Transmission
Transmission

ZF 6 Speed AMT

Brakes
Brakes

Airbrakes

Emission
Emission Standard

EU6

Electric
Vehicle Electrics

24V

Variants
Job Ready™ Variants

ipper, Box, Recovery, Chiller, Curtainside, & Traffic Control

SPECIFICATIONS

Overview

Overview
  • GVM | GCM: 11995kg
  • GCM: 20000kg
  • Wheelbase: 4200mm | 4800mm | 5150mm | 5750mm
  • Axle Configuration: 4 x 2 Rigid
  • Transmission: ZF 6-Speed AMT
  • Engine Type: Cummins F4.5
  • Fuel Type: Diesel
  • Cab Type: Rest Cab (ECE R-29 Certified)
  • Number of Seats: 3
  • Sleeping Capacity: 1 x Single Bed
  • Emission Standard: Euro 6e
  • Maximum Power: 162kW (217hp)
  • Maximum Torque: 820Nm
  • Brake System: Air

Performance

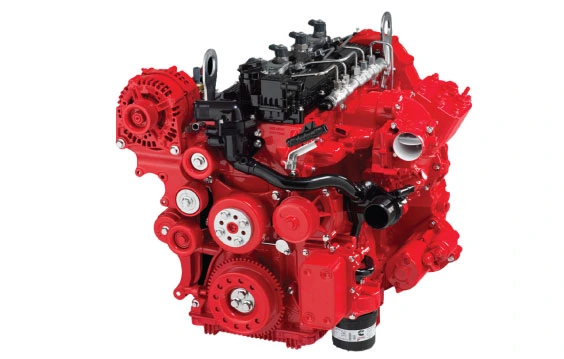

Engine and Transmission
  • Engine Type: Cummins F4.5EVIE220
  • Emission Certification: Euro 6e
  • Cylinder Arrangement: 4 x In-line with Turbo Intercooler
  • Displacement: 4500cc
  • Maximum Power: Cummins 162kW @ 2300rpm
  • Maximum Torque: 820Nm @ 1400rpm
  • Fuel Injection System: Bosch Common Rail
  • Driving Modes: Economy/Power & Crawl
  • Engine Features: Idle Up (via steering wheel cruise control)
  • Fuel Type: Diesel

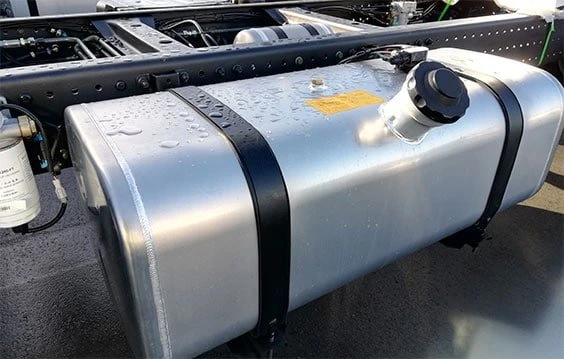

  • Fuel Tank: 200L Aluminium Alloy
  • Transmission Type: ZF 6AS1100TO AMT
Axle, Brakes and Suspension
  • Brake System: Air + ABS, ASR, ESC, EBS, EPB, AEBS
  • Air Tank Material: Aluminium Alloy
  • Brake Type – Front / Rear: Drum
  • Park Brake: Electronic Air
  • Suspension – Front: Multi-leaf + Stabiliser Bar
  • Suspension – Rear: Multi-leaf + Stabiliser Bar
  • Shock Absorbers: Double Acting
  • Front Axle Type: Forged & Stamped I-Beam
  • Front Axle Max. Capacity: 5450kg
  • Front Axle Tyre Capacity: 5450kg
  • Rear Axle Type: Banjo (Stamped & Welded Housing)
  • Rear Axle Max. Capacity: 9000kg
  • Rear Axle Tyre Capacity: 10300kg
  • Rear Axle Ratio: 4.111 : 1
  • Turning Circle: 17m

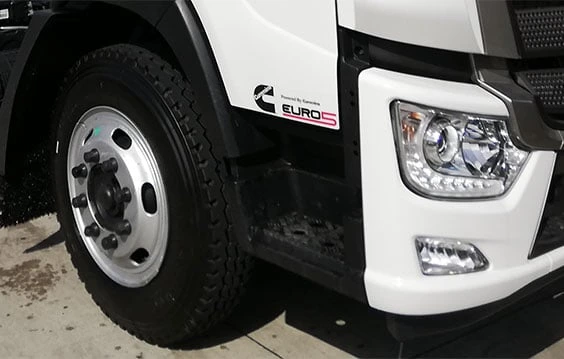

Wheels & Tyres
  • Wheel Rims: Aluminium Alloy
  • Wheel Size (Ø x W): 19.5″ x 7.5″
  • Tyre Size: 265/70 R19.5
  • Spare Wheel: Yes

Technology

Connectivity
  • Bluetooth®: Yes (Hands Free)
  • Connectivity & Charging: 1 x USB Port / 1 x SD Slot
  • Auxilary Power Outlet: 2 x 24V (15A)
Audio
  • Radio: AM/FM
  • Speakers: 2
  • Display Screen: LCD Touchscreen

Safety

Foton Safety Logic
  • Electronic Air Park Brake (EPB): Yes
  • Day Time Running Lights (DRL): Yes (LED)
  • Front & Rear Fog Lights: Yes
Active Safety Systems
  • Anti-lock Braking System (ABS): Yes
  • Lane Departure Warning (LDWS): Yes
  • Anti-Slip Regulator (ASR): Yes
  • Hill-Start Assist / Auto Hold: Yes
  • Electronic Stability Program (ESP): Yes
  • Autonomous Emergency Braking (AEB): Yes
Parking Assistance
  • Reverse Camera: Yes
  • Reverse Sensors: Yes (specific Job ReadyTM variants only)
  • Reverse Buzzer: Yes
Other Safety Features
  • Rearview Camera: Yes (Alloy Box, Curtainside & Fridge only)
  • Drivers Seatbelt Warning: Yes
  • Doors Unlocked Warning: Yes

Exterior

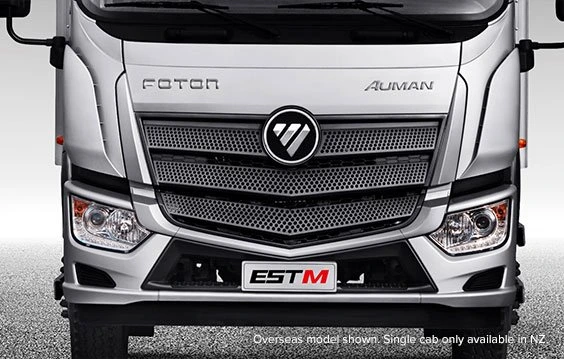

Design Features

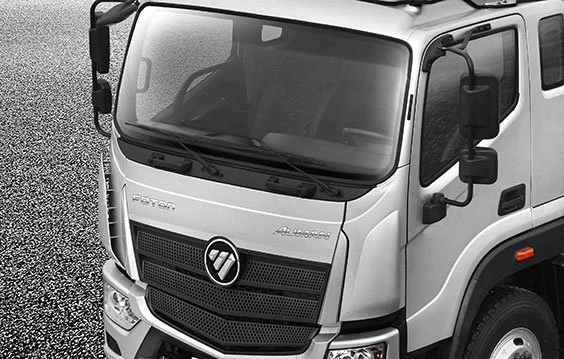

  • Cab Type: Rest Cab (ECE R-29 Certified)
  • Cab Tilt: Forward Control Hydraulic Tilt Function

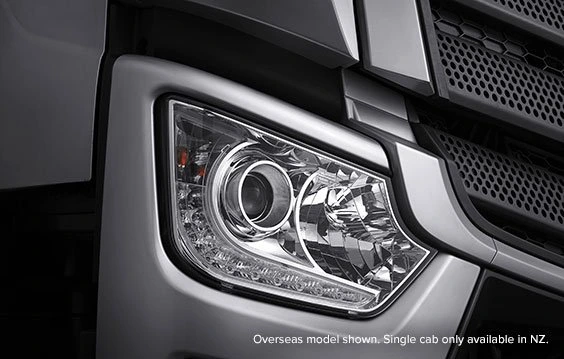

Front Lighting
  • Headlights: Auto Sensing, Adjustable Integrated Halogen
  • Front & Rear Fog Lights: Yes
  • Day Time Running Lights (DRL): Yes (LED)
  • Side Turn Light + Corner Lamp: TBC
  • Roof Clearance Lights: Yes (LED)
Other Features

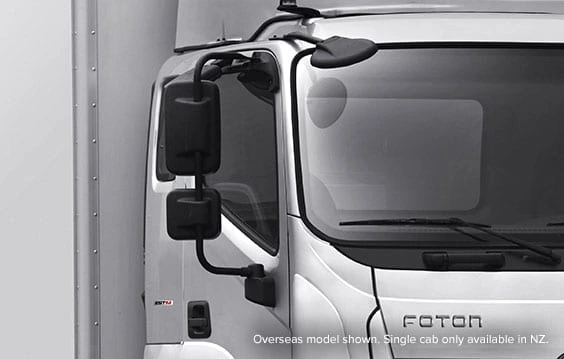

  • Exterior Mirrors: 6 (4 x Side / 1 x Spotter / 1 x Curb)
  • Exterior Storage: Toolbox (Tipper & Curtainsider only)
  • Illuminated Door Step: Yes (LH & RH)
  • Other Accessories: Air Deflector (Box Body, Curtain & Chiller only)

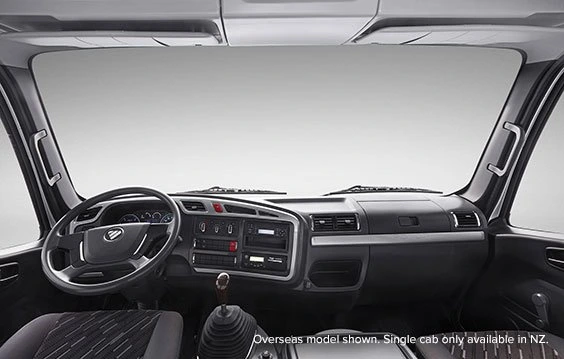

Interior

Seating
  • Seating: 3 (2 x Grammer Air Sprung Climate Control)
  • Sleeping Capacity: 1 x Single Bed
  • Seat Material: Fabric
  • Seat Adjustment: Multi Adjustable

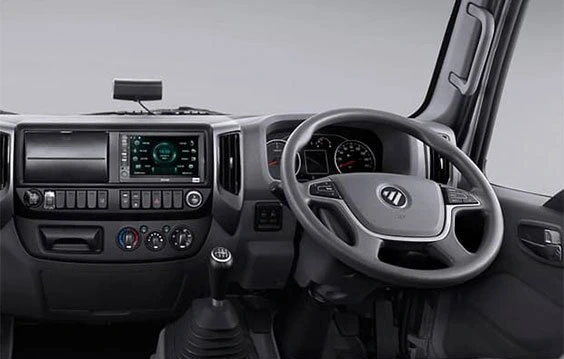

Convenience Features

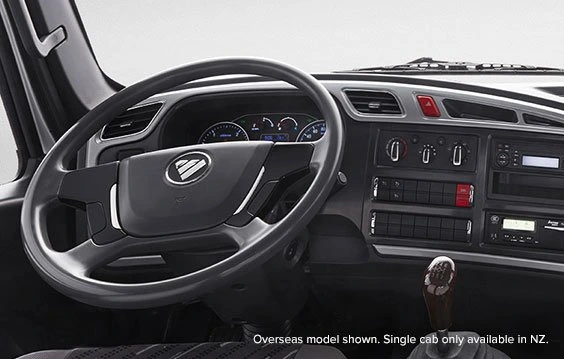

  • Steering Wheel Controls: Audio/Bluetooth/Cruise Control
  • Connectivity & Charging: 1 x USB Port / 1 x SD Slot
  • Auxilary Power Outlets: 2 x 24V (15A)

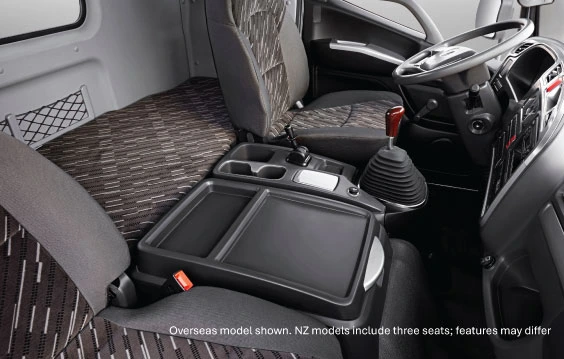

  • Internal Storage : Centre Console, Overhead Shelves and Door Pockets
  • Doors & Windows: Remote Central Locking & Electric Windows
Instruments
  • Gauges: Speedometer with Odometer, Tachometer, Fuel Level, AdBlue Level, Water Temperature
  • Digital Information Display: Yes
Other Features
  • Adjustable Steering Column: Yes (Telescopic & Tilt)
  • Engine Idle Up Function: Yes (Steering Wheel Cruise Control Button)

Dimensions & Weight

Dimensions
  • Wheelbase: 4200mm | 4800mm | 5150mm | 5750mm
  • Overall Length: 7505mm | 8355mm | 9555mm | 10055mm
  • Overall Width: 2410mm
  • Overall Height: 2820mm
  • Wheel Track: 1940mm (Front) | 1800mm (Rear)
  • Rear Frame Height: 966mm
Weights
  • Kerb: 4380kg | 4430kg | 4460kg | 4490kg
  • GVM: 11995kg
  • GCM: 20000kg

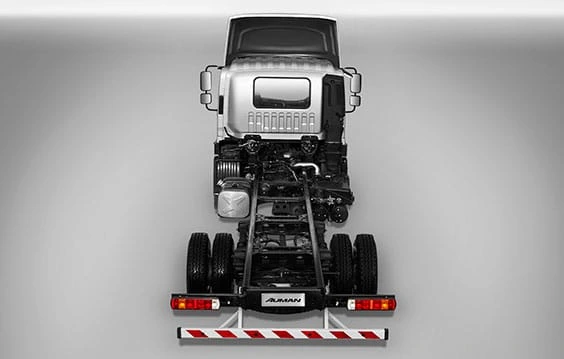

Chassis
  • Chassis Frame: Longitudinal Beam High Strength Steel
  • Dimensions: 234 x 65/75* x (6+4)mm *(Front/Rear)
  • Rear Frame Width: 865mm
  • Tensile Strength: 700MPa

Warranty

Warranty
  • Standard Vehicle Warranty: 3 Years/300,000kms (T&C’s apply)
  • Extended Vehicle Warranty: 2 Years/200,000kms (T&C’s apply)
  • Job Ready™ Body Warranty: 1 Year (T&C’s apply)

Choose Your Foton Job Ready™

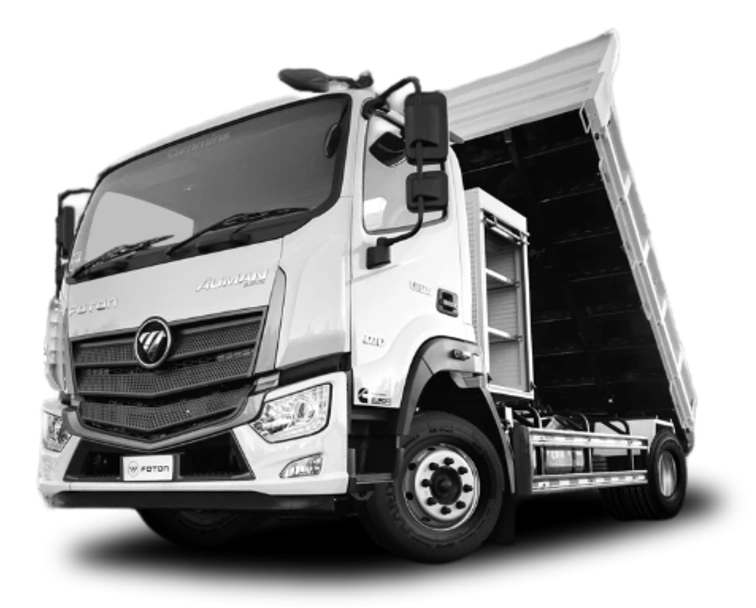

Tipper

Features
  • Push Button Activation
  • Cordless Remote Control
  • Front-of-body Hoist
  • Steel Toolbox
  • Deck Lock
  • 3-way Opening Tailgate
  • Stainless Steel Rail Caps
  • Provision for Chain Spreader
  • Light Cover (Tarp) Rails
  • Rearview Camera
Specifications (4200 WB)
  • Kerb Weight: 7510kg
  • Max Payload: 4485kg
  • Inner Length: 4500mm
  • Inner Width: 2285mm
  • Tow Rating: 6000kg
Options
  • Certified Hooks/Rails
  • Certified Towbar
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • 14T GVM Upgrade
  • Parkbrake Alarm

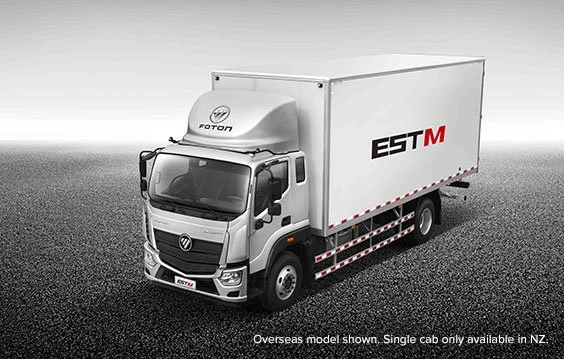

Box Body

Features
  • Powdercoated Finish
  • Aluminium Alloy Floor
  • Internal Battons & Rails
  • Double Rear Doors
  • Double Side Doors
  • Stainless Locking Bars
  • Side Steps
  • Rearview Camera
  • Air Deflector
  • 3-Point Contact System
Specifications (4800 WB | 5150 WB | 5750 WB)
  • Kerb Weight: TBC
  • Max Payload: TBC
  • Inner Length: (6250mm | 7450mm | 8000mm)
  • Inner Width: 2550mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Carpeted Battons
  • 14T GVM Upgrade
  • Parkbrake Alarm

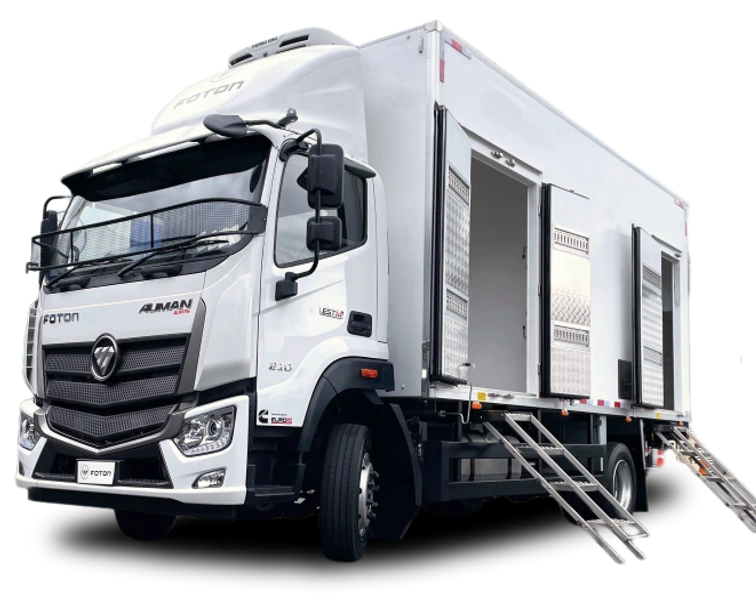

Refrigerated

Features
  • Thermo King
  • Aluminium Alloy Floor
  • Side Protection Plates
  • 3 Rows of Cargo Tracks
  • Double Rear Doors
  • Single Side Door
  • Stainless Locking Bars
  • Retractable Side Steps
  • Rear Curtain Wall
  • Rearview Camera
  • Air Deflector
Specifications (4800 WB | 5150 WB | 5750 WB)
  • Kerb Weight: TBC
  • Max Payload: TBC
  • Inner Length: (6510mm | 6860mm | 7460mm)
  • Inner Width: 2315mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Partitioning Wall
  • Stand-by Power
  • 14T GVM Upgrade
  • Parkbrake Alarm

curtainsiders

Features
  • White PVC Curtains
  • Trans-Tex Ply Floor
  • Certified Tie Rails
  • Underbody Toolbox
  • Rearview Camera
  • Air Deflector
  • 12 Pallet Floor Space
Specifications (4800 WB | 5150 WB | 5750 WB)
  • Kerb Weight: TBC
  • Max Payload: TBC
  • Inner Length: (6500mm | 6850mm | 7450mm)
  • Inner Width: 2500mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Curtain Branding
  • Rear Solid Wall
  • Rear Roller Doors
  • Rear Double Door
  • Tail Lift (+/- Seal Kit)
  • 14T GVM Upgrade
  • Parkbrake Alarm

Recovery

Features
  • Tilting & Sliding Deck
  • 40kN Hydraulic Winch
  • LH & RH Side Controls
  • Cordless Remote Control
  • Underbody Toolbox
  • 3.3m Deck Slide Distance
  • 1.9m Towing Arm Length
  • 1.6m Towing Arm Extension
Specifications (4800 WB)
  • Kerb Weight: TBC
  • Maximum Payload: TBC
  • Inner Length: TBC
  • Inner Width: 2510mm
  • Tow Rating: 8000kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Parkbrake Alarm
