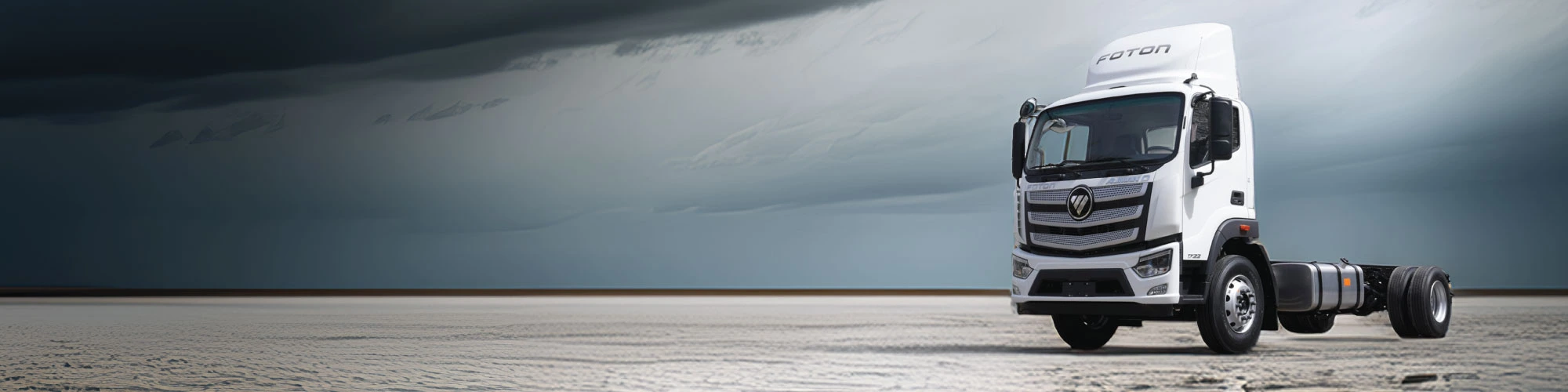

Auman D BJ1186

Powered by Cummins – Driven by Foton

The Auman D BJ1186 is powered by a Cummins 6.7L Euro 6 engine delivering 320hp and 1200Nm of torque, paired with a ZF 9-speed AMT transmission, rear ECAS (Electronically Controlled Air Suspension) and 4-wheel disc brakes for smooth, efficient performance.

With a 5,500mm wheelbase and a 17,995kg GVM, the BJ1186 is purpose-built for demanding applications where strength, payload, and reliability are critical.

Active safety features such as AEB, LDWS, and ESP come standard, giving operators peace of mind on the road. Inside, the cab provides a modern, spacious environment with driver and passenger climate, air-sprung Grammer seats, a comfortable day bed and integrated infotainment.

Choose from our Foton Job Ready bodies – Box Body, Chiller, Curtainsider, or select a cab chassis for a fully customised build. Enquire about availability today.

Make an Enquiry
Model
Gvm
GVM

17,995kg

power
Power

231kW (320hp)

Torque
Torque

1200Nm

Transmission
Transmission

ZF 9-Speed AMT

Brakes
Brakes

Airbrakes

Emission
Emission Standard

EU6

Electric
Vehicle Electrics

24V

Variants
Job Ready™ Variants

Box-Body, Refrigerated & Curtainsiders

SPECIFICATIONS

Overview

Overview
  • GVM: 18000kg
  • GCM: 32000kg
  • Wheelbase: 5500mm
  • Axle Configuration: 4 x 2 Rigid
  • Transmission: ZF 9-Speed AMT
  • Engine Type: Cummins D6.7
  • Fuel Type: Diesel
  • Cab Type: Rest Cab (ECE R-29 Certified)
  • Number of Seats: 3
  • Sleeping Capacity: 1 x Single Bed
  • Emission Standard: Euro 6e
  • Maximum Power: 239kW (320hp)
  • Maximum Torque: 1200Nm
  • Brake System: Air

Performance

Engine and Transmission

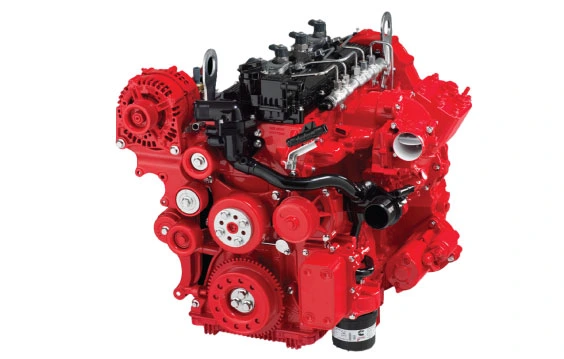

  • Engine Type: Cummins ISD6.7
  • Emission Certification: Euro 6e
  • Cylinder Arrangement: 6 x In-line with Turbo Intercooler
  • Displacement: 6690cc
  • Maximum Power: Cummins 231kW @ 2300rpm
  • Maximum Torque: 1200Nm @ 1200-1500rpm
  • Fuel Injection System: Electronic High-Pressure Common Rail
  • Driving Modes: Economy/Power & Crawl
  • Fuel Type: Diesel
  • Fuel Tank: 450L Aluminium Alloy
  • Transmission Type: ZF 9AS157TO AMT
Axle, Brakes and Suspension
  • Brake System: Air + ABS, ASR, ESC, EBS, EPB, AEBS
  • Air Tank Material: Aluminium Alloy
  • Brake Type – Front / Rear: Ventilated Disc
  • Park Brake: Electronic Air
  • Suspension – Front: Multi-leaf + Stabiliser Bar
  • Suspension – Rear: Air Bag + ECAS + Stabiliser Bar
  • Shock Absorbers: Double Acting
  • Front Axle Type: Forged & Stamped I-Beam
  • Front Axle Max. Capacity: 7200kg
  • Front Axle Tyre Capacity: 7100kg
  • Rear Axle Type: Banjo (Stamped & Welded Housing)
  • Rear Axle Max. Capacity: 13000kg
  • Rear Axle Tyre Capacity: 13000kg
  • Rear Axle Ratio: 4.875 : 1
  • Turning Circle: 19.45
Wheels & Tyres
  • Wheel Rims: Aluminium Alloy
  • Wheel Size (Ø x W): 22.5″ x 9.0″
  • Tyre Size: 295/80 R22.5
  • Spare Wheel: Yes

Technology

Connectivity
  • Bluetooth®: Yes (Hands Free)
  • Connectivity & Charging: 1 x USB Port / 1 x SD Slot
  • Auxilary Power Outlet: 2 x 24V (15A)
Audio
  • Radio: AM/FM
  • Speakers: 2
  • Display Screen: LCD Touchscreen

Safety

Foton Safety Logic
  • Electronic Air Park Brake (EPB): Yes
  • Day Time Running Lights (DRL): Yes (LED)
  • Front & Rear Fog Lights: Yes
Active Safety Systems
  • Anti-lock Braking System (ABS): Yes
  • Lane Departure Warning (LDWS): Yes
  • Anti-Slip Regulator (ASR): Yes
  • Hill Start Assist / Auto-Hold: Yes
  • Electronic Stability Program (ESP): Yes
  • Autonomous Emergency Braking (AEB): Yes
Parking Assistance
  • Reverse Camera: Yes
  • Reverse Sensors: Yes
  • Reverse Buzzer: Yes
Other Safety Features
  • Drivers Seatbelt Warning: Yes
  • Doors Unlocked Warning: Yes

Exterior

Design Features
  • Cab Type: Rest Cab (ECE R-29 Certified)
  • Cab Tilt: Forward Control Hydraulic Tilt Function
Front Lighting

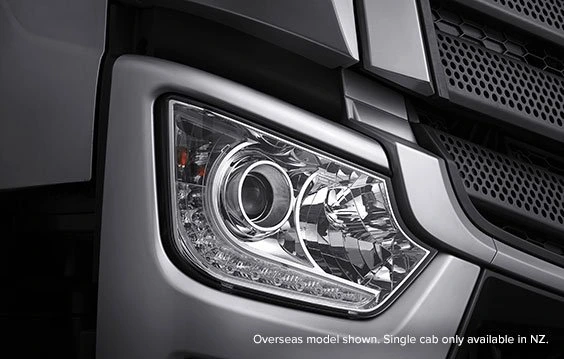

  • Headlights: Auto Sensing, Adjustable Integrated Halogen
  • Front & Rear Fog Lights: Yes
  • Day Time Running Lights (DRL): Yes (LED)
  • Roof Clearance Lights: Yes (LED)
Other Features
  • Exterior Mirrors: 6 (4 x Side / 1 x Spotter / 1 x Curb)
  • Illuminated Door Step: Yes (LH & RH)
  • Other Accessories: Air Deflector (Box Body, Curtain & Chiller only)

Interior

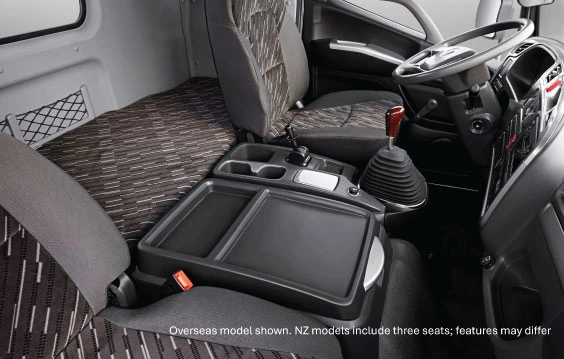

Seating
  • Seating: 3 (2 x Grammer Air Sprung + Climate Control)
  • Sleeping Capacity: 1 x Single Bed
  • Seat Material: Fabric
  • Seat Adjustment: Multi-Adjustable
Convenience Features
  • Steering Wheel Controls: Audio/Bluetooth/Cruise Control
  • Connectivity & Charging: 1 x USB Port / 1 x SD Slot
  • Auxilary Power Outlets: 2 x 24V (15A)
  • Internal Storage : Centre Console, Overhead Shelves and Door Pockets
  • Doors & Windows: Remote Central Locking & Electric Windows
Instruments
  • Gauges: Speedometer with Odometer, Tachometer, Fuel Level, AdBlue Level, Water Temperature
  • Digital Information Display: Yes
Other Features
  • Adjustable Steering Column: Yes (Telescopic & Tilt)
  • Engine Idle Up Function: Yes (Steering Wheel Cruise Control Button)

Dimensions & Weight

Dimensions
  • Wheelbase: 5500mm
  • Overall Length: 9300mm
  • Overall Width: 2460mm
  • Overall Height: 2820mm
  • Wheel Track: 2020mm (Front) | 1880mm (Rear)
  • Rear Frame Height: 1008mm
Weights
  • Kerb: 5330Kg
  • GVM: 18000kg
  • GCM: 26000kg
Chassis
  • Chassis Frame: Longitudinal Beam High Strength Steel
  • Dimensions: 234 x 65/75* x (6+4)mm*(Front/Rear)
  • Rear Frame Width: 865mm
  • Tensile Strength: 700-880MPa

Warranty

Warranty
  • Standard Vehicle Warranty: 3 Years/300,000kms (T&C’s apply)
  • Extended Vehicle Warranty: 2 Years/200,000kms (T&C’s apply)
  • Job Ready™ Body Warranty: 1 Year (T&C’s apply)

Choose Your Foton Job Ready™

Box Body

Features
  • Powdercoated Finish
  • Aluminium Alloy Floor
  • Internal Battons & Rails
  • Double Rear Doors
  • Double Side Doors
  • Stainless Locking Bars
  • Side Steps
  • Rearview Camera
  • Air Deflector
  • 3-Point Contact System
Specifications (5500 WB)
  • Kerb Weight: 5800mm
  • Max Payload: 12195mm
  • Inner Length: 7100mm
  • Inner Width: 2350mm
  • Inner Height: 2750mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Carpeted Battons
  • Parkbrake Alarm

Refrigerated

Features
  • Thermo King
  • Aluminium Alloy Floor
  • Side Protection Plates
  • 3 Rows of Cargo Tracks
  • Double Rear Doors
  • Double + Single Side Door
  • Stainless Locking Bars
  • Retractable Side Steps
  • Rear Curtain Wall
  • Rearview Camera
  • Air Deflector
Specifications (5500 WB)
  • Kerb Weight: 7500kg
  • Max Payload: 10495kg
  • Inner Length: 7200mm
  • Inner Width: 2300mm
  • Inner Height: 2640mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Partitioning Wall
  • Stand-by Power
  • Parkbrake Alarm

Curtainsiders

Features
  • White PVC Curtains
  • Trans-Tex Ply Floor
  • Certified Tie Rails
  • Underbody Toolbox
  • Rearview Camera
  • Air Deflector
  • 14 Pallet Floor Space
Specifications (5500 WB)
  • Kerb Weight: 6840kg
  • Max Payload: 11155kg
  • Inner Length: 7400mm
  • Inner Width: 2500mm
  • Inner Height: 2600mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Curtain Branding
  • Rear Solid Wall
  • Rear Roller Door
  • Rear Double Doors
  • Tail Lift (+/- Seal Kit)
  • Parkbrake Alarm
