Aumark S BJ1078
Powered by Cummins – Driven by Foton
The Cummins powered Aumark S BJ1078 has a medium wheelbase of 3360mm and is available in two GVM’s – 5995kg or 8495kg – giving buyers the choice of driving it on a Class 1 car license or maximising its payload potential with the Class 2 option. This makes the BJ1078 a versatile solution for any job.
The BJ1078 can be ordered with one of the following Foton Job Ready options: Flat Deck, Tipper, Box Body, Chiller, Curtainsider & Traffic Control.

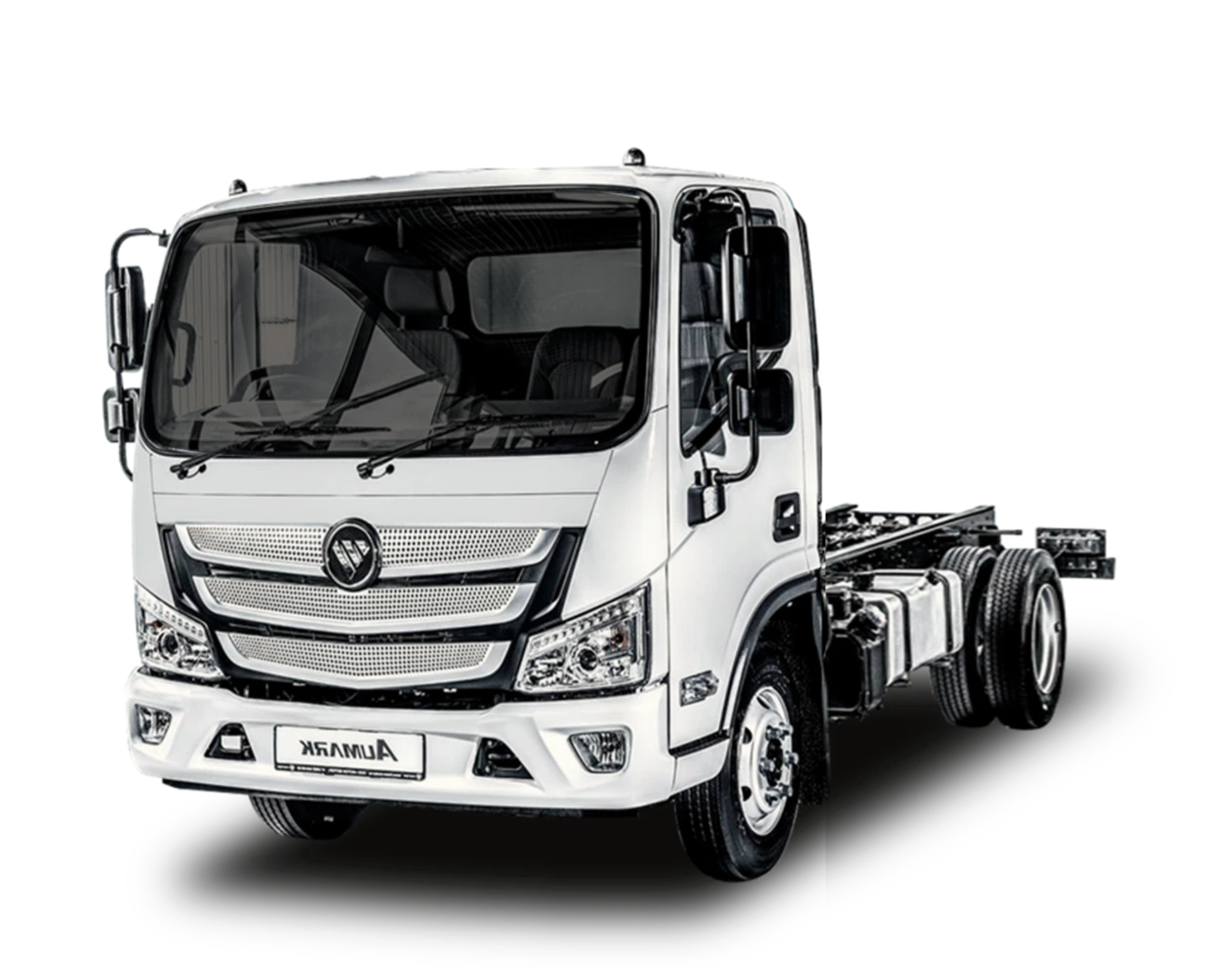

All our models can also come in a cab chassis format for locally built custom body solutions. To enquire about availability, click the button below
Make an Enquiry

GVM/GCM
8495kg/11995kg

Power
115kW/2600rpm (Cummins)

Torque
500Nm/1200-1900rpm

Transmission
ZF 6-Speed AMT

Brakes
Airbrakes

Emission Standard
EU6

Vehicle Electrics
24V

Job Ready™ Variants
Tipper, Tray, Box Body, Chiller, Curtainside & Traffic Control
SPECIFICATIONS

Overview
- GVM: 8495kg
- GCM: 11995kg
- Wheelbase: 3360mm
- Axle Configuration: 4 x 2 Rigid
- Transmission: ZF 6-Speed AMT
- Engine Type: Cummins F3.8
- Fuel Type: Diesel
- Cab Type: Wide Cab (ECE R-29 Certified)
- Number of Seats: 3
- Emission Standard: Euro 6e
- Maximum Power: 115kW @ 2600rpm
- Maximum Torque: 550Nm @1200-1900rpm
- Brake System: Air
Performance
- Engine Type: Cummins F3.8EVIE156
- Emission Certification: Euro 6e
- Cylinder Arrangement: 4 x In-line with Turbo Intercooler
- Displacement: 3802cc
- Maximum Power: Cummins 115kW @ 2600rpm
- Maximum Torque: 550Nm @1200-1900rpm
- Fuel Injection System: Bosch Common Rail
- Driving Modes: Economy/Power, Crawl & Snow
- Engine Features: Idle Up (via steering wheel cruise control)
- Fuel Type: Diesel
- Fuel Tank: 120L Aluminium Alloy
- Transmission Type: ZF 6AU558TO 6-Speed AMT
- Brake System: Air + ABS, ASR, ESC, EBS, EPB, ABH, AEBS, FCW, LDWS
- Air Tank Material: Aluminium Alloy
- Brake Type – Front / Rear: Disc
- Park Brake: Electronic Air
- Suspension – Front: Multi-leaf + Stabiliser Bar
- Suspension – Rear: Multi-leaf + Stabiliser Bar
- Shock Absorbers: Double Acting
- Front Axle Type: Forged & Stamped I-Beam
- Front Axle Max. Capacity: 2850kg
- Front Axle Tyre Capacity: 3400kg
- Rear Axle Type: Banjo (Stamped & Welded Housing)
- Rear Axle Max. Capacity: 6000kg
- Rear Axle Tyre Capacity: 640kg
- Rear Axle Ratio: 4.3 : 1 / 4.778 : 1 (Tipper only)
- Turning Circle: 13.2m
- Wheel Rims: Steel
- Wheel Size (Ø x W): 17.5″ x 6″
- Tyre Size: 215/75 R17.5
- Spare Wheel: Yes
Technology
- Bluetooth®: Yes (Hands Free)
- Connectivity & Charging: 1 x USB Port / 1 x SD Slot
- Auxilary Power Outlet: 2 x 24V (15A)
- Radio: AM/FM
- Speakers: 2
- Display Screen: LCD Touchscreen
Safety
- Electronic Air Park Brake (EPB): Yes
- Day Time Running Lights (DRL): Yes (LED)
- Front & Rear Fog Lights: Yes
- Anti-lock Braking System (ABS): Yes
- Lane Departure Warning (LDWS): Yes
- Anti-Slip Regulator (ASR): Yes
- Hill Start Assist / Auto-Hold: Yes
- Electronic Stability Program (ESP): Yes
- Autonomous Emergency Braking (AEB): Yes
- Reverse Camera: Yes
- Reverse Sensors: Yes (specific Job ReadyTM variants only)
- Reverse Buzzer: Yes
- SRS Airbag: Yes (Driver & Passenger)
- Rearview Camera: Yes (Alloy Box, Traffic Mgmt, Curtainside & Fridge only)
- Drivers Seatbelt Warning: Yes
- Doors Unlocked Warning: Yes
Exterior
- Cab Type: Wide Cab (ECE R-29 Certified)
- Cab Tilt: Forward Control Manual Tilt Function
- Headlights: Auto Sensing, Adjustable Integrated Halogen
- Front & Rear Fog Lights: Yes
- Day Time Running Lights (DRL): Yes (LED)
- Side Turn Light + Corner Lamp: Yes
- Roof Clearance Lights: Yes (LED)
- Exterior Mirrors: 6 (4 x Side / 1 x Spotter / 1 x Curb)
- Exterior Storage: Toolbox (Tipper & Curtainsider only)
- Illuminated Door Step: Yes (LH & RH)
- Other Accessories: Air Deflector (Box Body, Curtain & Chiller only)
Interior
- Seating: 3
- Seat Material: Fabric
- Seat Adjustment: Manual Slide and Recline Adjustments
- Steering Wheel Controls: Audio/Bluetooth/Cruise Control
- Connectivity & Charging: 1 x USB Port / 1 x SD Slot
- Auxilary Power Outlets: 2 x 24V (15A)
- Internal Storage : Centre Console, Overhead Shelves and Door Pockets
- Doors & Windows: Remote Central Locking & Electric Windows
- Gauges: Speedometer with Odometer, Tachometer, Fuel Level, AdBlue Level, Water Temperature
- Digital Information Display: Yes
- Height Adjustable Seat Belt: Yes (Driver-side only)
- Adjustable Steering Column: Yes (Telescopic & Tilt)
- Engine Idle Up Function: Yes (Steering Wheel Cruise Control Button)
Dimensions & Weight
- Wheelbase: 3360mm
- Overall Length: 5960mm
- Overall Width: 2200mm
- Overall Height: 2350mm
- Wheel Track: 1730mm (Front) | 1615mm (Rear)
- Rear Frame Height: 810mm
- Kerb: 2920kg
- GVM: 8495kg
- GCM: 11995kg
- Chassis Frame: Longitudinal Beam High Strength Steel
- Dimensions: 214 x 65 x 5mm
- Rear Frame Width: 800mm
- Tensile Strength: 510-650MPa
Warranty
- Standard Vehicle Warranty: 3 Years/160,000kms (T&C’s apply)
- Job Ready™ Body Warranty: 1 Year (T&C’s apply)
Choose Your Foton Job Ready™

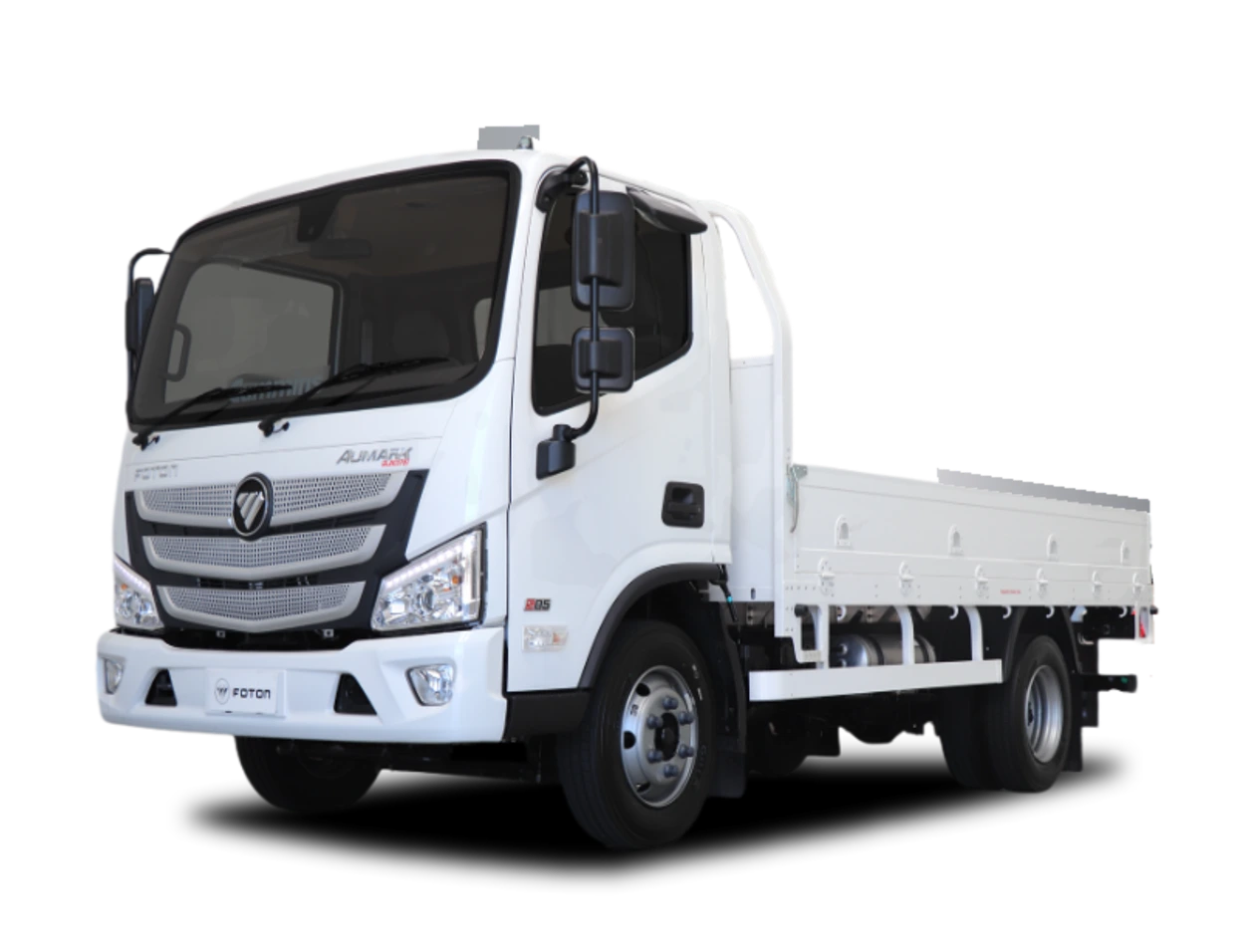

FLAT Deck
- Powdercoated Finish
- Four Corner Steps
- Drop-sides (LH & RH)
- Rope Holes (each side)
- Stainless Steel Rail Caps
- Light Cover (Tarp) Hooks
- Kerb Weight: 3230kg
- Max Payload: (2765kg (C1) | 5265kg (C2))
- Inner Length: 4060mm
- Inner Width: 2090mm
- Inner Height: 400mm
- Tow Rating: 3500kg
- Certified Hooks/Rails
- Certified Towbar
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Trans-Tex Ply Deck
- Parkbrake Alarm

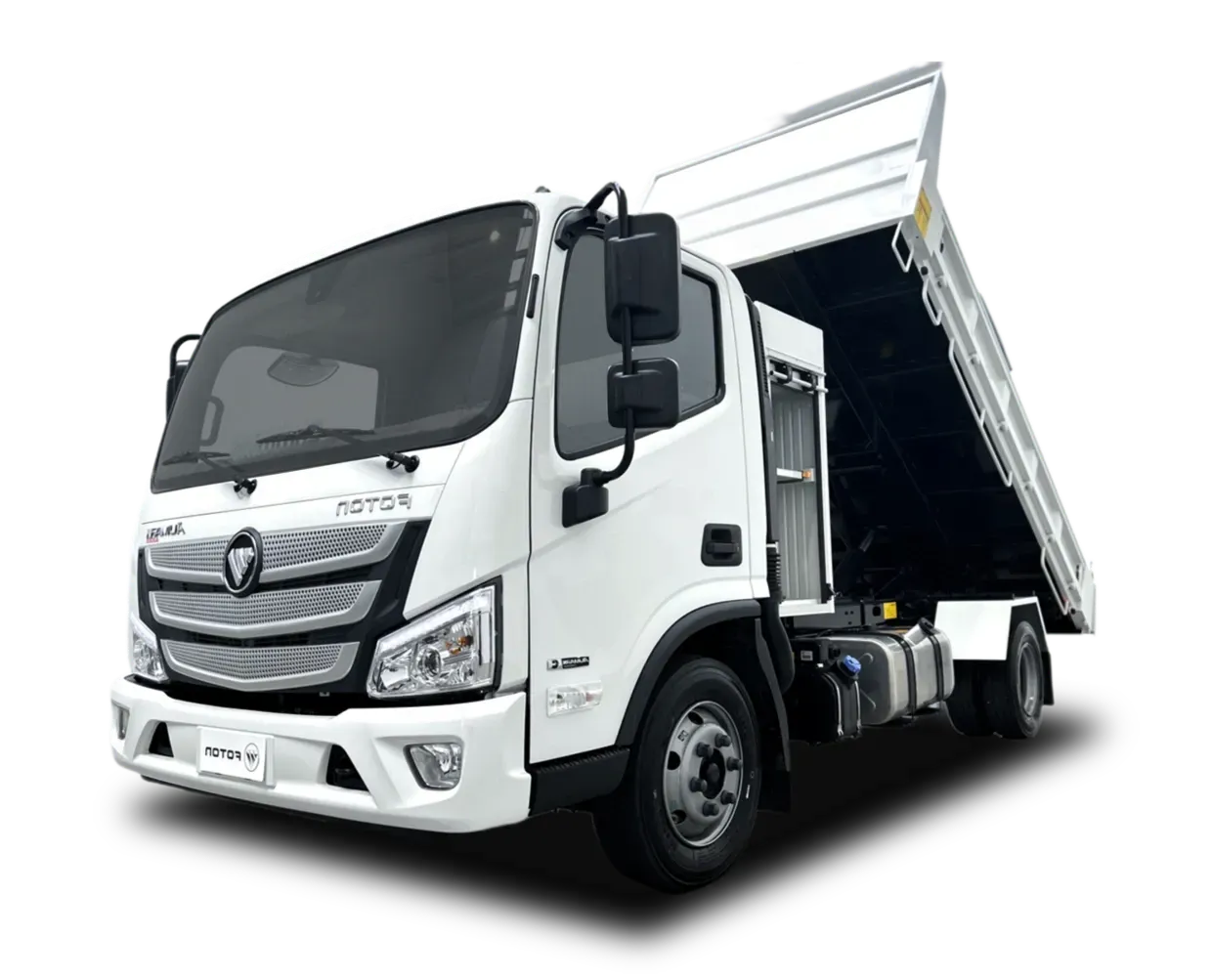

Tipper
- Push Button Activation
- Cordless Remote Control
- Underbody Hoist with Subframe
- Steel Toolbox
- Deck Lock
- Drop-side Tray (LH & RH)
- 3-way Opening Tailgate
- Stainless Steel Rail Caps
- Provision for Chain Spreader
- Light Cover (Tarp) Rails
- Kerb Weight: 4080kg
- Max Payload: (1915kg (C1) | 4415kg (C2))
- Inner Length: 3800mm
- Inner Width: 1900mm
- Inner Height: 380mm
- Tow Rating: 3500kg
- Certified Hooks/Rails
- Certified Towbar
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Parkbrake Alarm

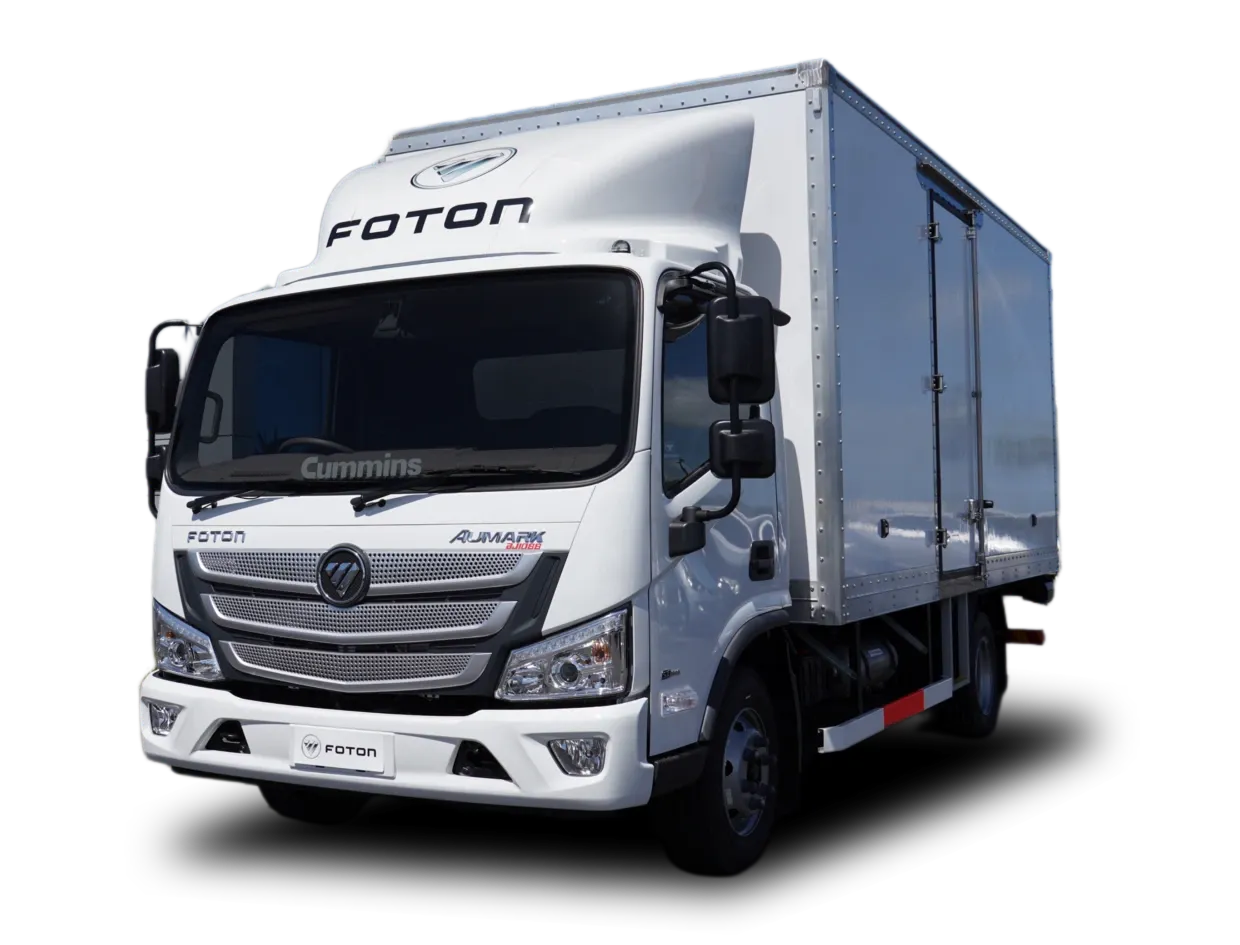

Box Body
- Powdercoated Finish
- Aluminium Alloy Floor
- Internal Battons & Rails
- Double Rear Doors
- Single Side Door
- Stainless Locking Bars
- Side Steps
- Rearview Camera
- Air Deflector
- 3-Point Contact System
- Kerb Weight: 4080kg
- Max Payload: 4415kg
- Inner Length: 4245mm
- Inner Width: 2190mm
- Inner Height: 2210mm
- Tow Rating: 3500kg
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Tail Lift (+/- Seal Kit)
- Carpeted Battons
- Parkbrake Alarm
Refrigerated
- Thermo King SV-400
- Aluminium Alloy Floor
- Side Protection Plates
- 3 Rows of Cargo Tracks
- Double Rear Doors
- Single Side Door
- Stainless Locking Bars
- Retractable Side Steps
- Rear Curtain Wall
- Rearview Camera
- Air Deflector
- Kerb Weight: 4425kg
- Max Payload: 4070kg
- Inner Length: 4200mm
- Inner Width: 2200mm
- Inner Height: 2100mm
- Tow Rating: 3500kg
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Tail Lift (+/- Seal Kit)
- Partitioning Wall
- Stand-by Power
- Parkbrake Alarm

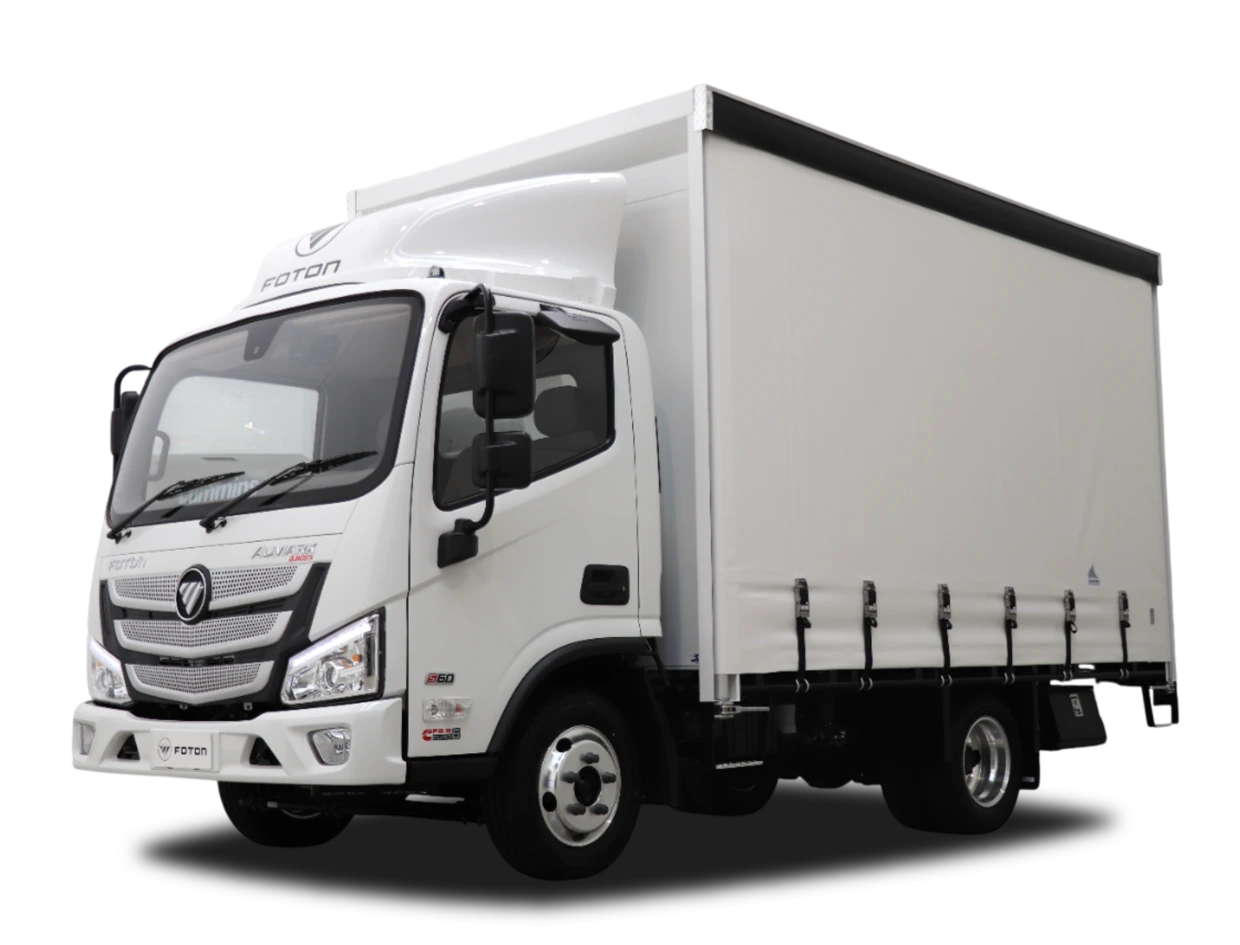

Curtainsiders
- White PVC Curtains
- Trans-Tex Ply Floor
- Certified Tie Rails
- Underbody Toolbox
- Rearview Camera
- Air Deflector
- 8 Pallet Floor Space
- Kerb Weight: 4000kg
- Max Payload: 4495kg
- Inner Length: 4300mm
- Inner Width: 2500mm
- Inner Height: 2200mm
- Tow Rating: 3500kg
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Curtain Branding
- Rear Solid Wall
- Rear Roller Door
- Rear Double Doors
- Tail Lift (+/- Seal Kit)
- Parkbrake Alarm

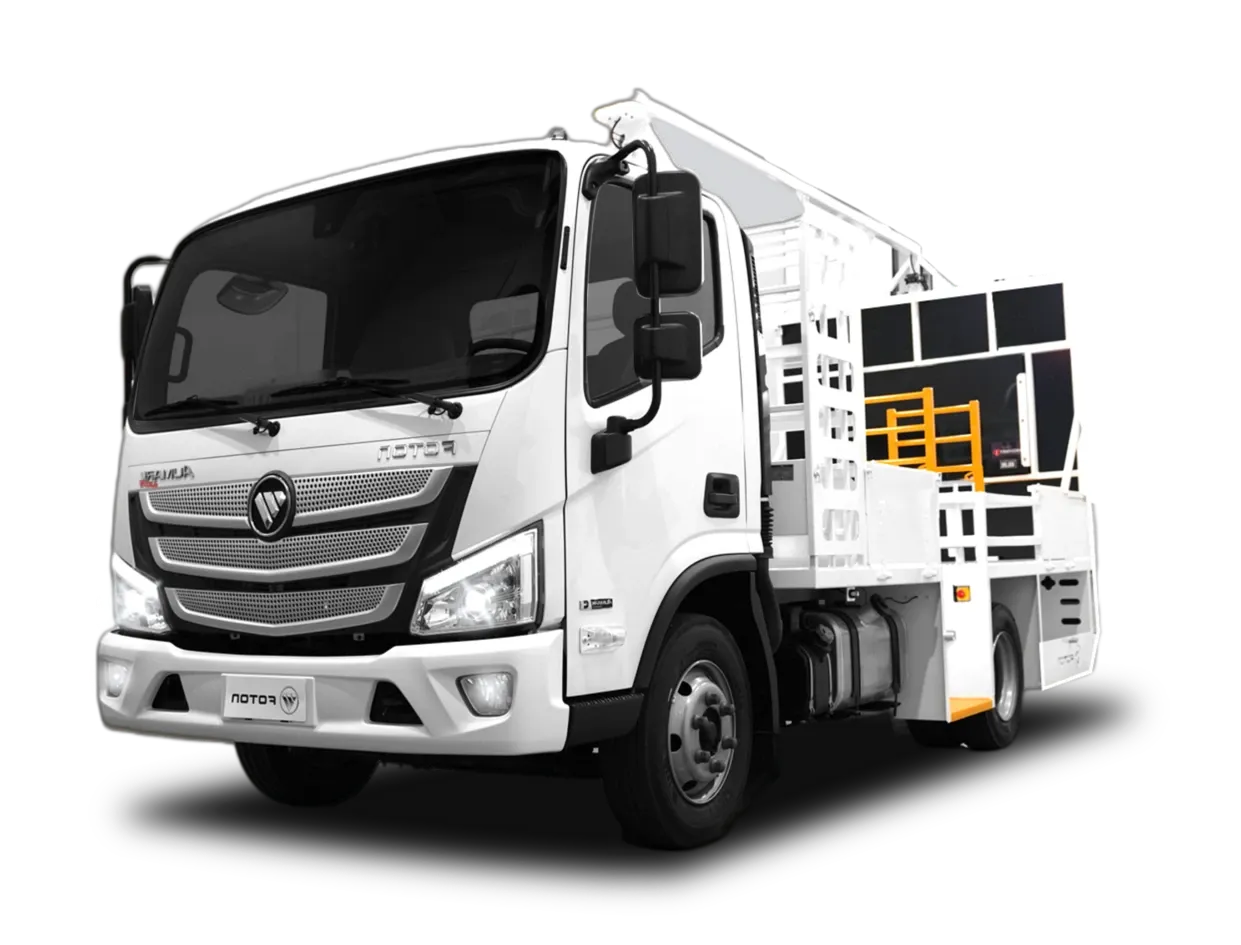

Traffic MGMT
- Certified Fall Arrest Beam
- LED Roof Beacon
- LED Grill Lights
- LED Marker Lights
- LED Deck & Step Lights
- LED Arrowboard
- Emergency Stop Buttons
- Equipment Capacity x 70
- Rearview Camera
- Reverse Camera
- Deck Camera
- Kerb Weight: 4195kg
- Max Payload: (1800kg (C1) | 4300kg (C2))
- Inner Length: 3850mm
- Inner Width: 2170mm
- Inner Height: 2100mm
- Tow Rating: 3500kg
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Parkbrake Alarm
