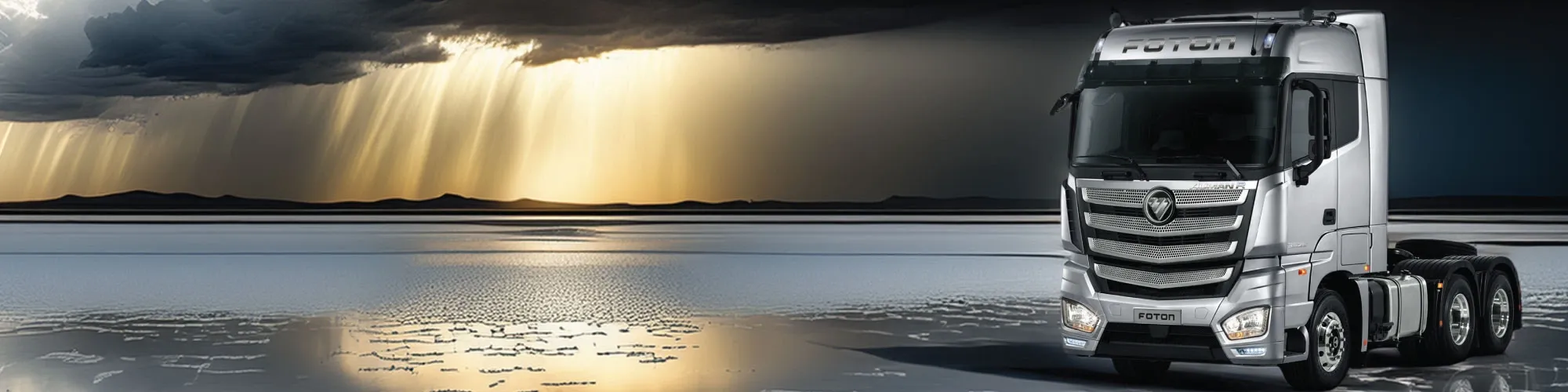

Auman R BJ4269
Powered by Cummins – Driven by Foton
With outstanding power delivery, long-haul comfort and European-designed safety compliance, the Foton Auman R 6×4 Tractor is built to perform on New Zealand’s highways and beyond. Developed in collaboration between Foton and Daimler Truck AG, it combines global expertise with proven technology for serious transport tasks.
Powered by the Cummins X13 (560hp) Euro 6e engine, the Auman R delivers exceptional pulling power across a wide rev range. Paired with the ZF TraXon 12-speed AMT with integrated Intarder, it offers intelligent, precise gear changes for optimal efficiency and maximum driver control.
The high-roof sleeper cab, certified to ECE R-29 crash-test standards, showcases Foton’s focus on safety and long-haul comfort. Designed for two, it features a multi-adjustable air- sprung driver’s seat and twin bunks, creating a spacious, ergonomic workspace for maximum productivity. Smart storage solutions—including an underbunk fridge, overhead lockers, shelves, and drawers—ensure every journey is both organised and efficient.
Safety and braking performance are reinforced with rear ECAS (Electronically Controlled Air Suspension) and a full air brake system, while the robust 75,000kg GCM makes the Auman R ideally suited for New Zealand’s heavy-duty linehaul market.
Make an Enquiry

GVM/GCM
26000kg/75000kg

Power
417kW @ 1600rpm

Torque
2600Nm @1000-1400rpm

Transmission
ZF 12-Speed AMT

Brakes
Airbrakes

Emission Standard
EU6

Vehicle Electrics
24V
SPECIFICATIONS

Overview
- GVM: 26000kg
- GCM: 75000kg
- Wheelbase: 3975mm (3300+1350)
- Axle Configuration: 6 x 4 Tractor
- Transmission: ZF TraXon 12-Speed AMT + Intarder
- Engine Type: Cummins X13
- Fuel Type: Diesel
- Cab Type: High Roof Sleeper Cab (ECE R-29 Certified)
- Number of Seats: 2
- Sleeping Capacity: 2 x Bunk Beds
- Emission Standard: Euro 6e
- Maximum Power: 417kW @ 1600rpm
- Maximum Torque: 2600Nm @1000-1400rpm
- Brake System: Air
Performance
- Engine Type: Cummins X13 EVID560
- Emission Certification: Euro 6e
- Cylinder Arrangement: 6 x In-line with Turbo Intercooler
- Displacement: 12,900cc
- Maximum Power: Cummins 417kW @ 1600rpm
- Maximum Torque: 2600Nm @1000-1400rpm
- Fuel Injection System: Electronic High-Pressure Common Rail
- Driving Modes: Economy/Power & Crawl
- Fuel Type: Diesel
- Fuel Tank: 680L Aluminium Alloy
- Transmission Type: ZF TraXon 12TX2621TD + Intarder
- Brake System: Air + ABS, ASR, HAS, ESC, EBS, EPB, AEBS
- Air Tank Material: Aluminium Alloy
- Brake Type – Front / Rear: Ventilated Disc
- Park Brake: Air Activated (Rear)
- Suspension – Front: Multi-leaf + Stabiliser Bar
- Suspension – Rear: Air Bag + ECAS + Stabiliser Bar
- Shock Absorbers: Double Acting
- Front Axle Type: Forged & Stamped I-Beam
- Front Axle Max. Capacity: 7500kg
- Front Axle Tyre Capacity: 7100kg
- Rear Axle Type: Banjo (Stamped & Welded Housing)
- Rear Axle Max. Capacity: 26000kg
- Rear Axle Tyre Capacity: 26000kg
- Rear Axle Ratio: 3.364 : 1
- Turning Circle: 7.59m
- Wheel Rims: Aluminium Alloy
- Wheel Size (Ø x W): 22.5″ x 8.99″
- Tyre Size: 275/70 R22.5
Technology
- Bluetooth®: Yes
- Connectivity & Charging: 1 x USB Port / 1 x SD Slot
- Auxilary Power Outlet: 2 x 24V (15A)
- Radio: AM/FM
- Speakers: 4
- Display Screen: LCD Touchscreen
Safety
- Electronic Air Park Brake (EPB): Yes
- Day Time Running Lights (DRL): Yes (LED)
- Front & Rear Fog Lights: Yes
- Anti-lock Braking System (ABS): Yes
- Lane Departure Warning (LDWS): Yes
- Anti-Slip Regulator (ASR): Yes
- Hill Start Assist / Auto-Hold: Yes
- Electronic Stability Program (ESP): Yes
- Autonomous Emergency Braking (AEB): Yes
- Reverse Camera: Yes
- Reverse Buzzer: Yes
- Cab Tilt Warning: Yes
- Drivers Seatbelt Warning: Yes
- Doors Unlocked Warning: Yes
Exterior
- Cab Type: High Roof Sleeper Cab (ECE R-29 Certified)
- Cab Tilt: Forward Control Hydraulic Tilt Function
- Headlights: Auto Sensing, Adjustable Integrated Halogen
- Front & Rear Fog Lights: Yes
- Day Time Running Lights (DRL): Yes
- Side Turn Light + Corner Lamp: Yes
- Roof Clearance Lights: Yes
- Exterior Mirrors: 6 (4 x Side / 1 x Spotter / 1 x Curb)
- Exterior Storage: 3 (2 x LH & 1 x RH Lockers)
- Illuminated Door Step: Yes (Driverside only)
- Other Accessories: Fifth Wheel, Air Deflector, Exterior Sunvisor
Interior
- Seating: 2 (1 x Air Sprung)
- Sleeping Capacity: 2 (1 x Foldout Bunk, 1 x Fixed Bunk)
- Seat Material: Fabric
- Seat Adjustment: 9-way Adjustable
- Steering Wheel Controls: Audio & Cruise Control
- Connectivity & Charging: 1 x USB Port / 1 x SD Slot
- Auxilary Power Outlets: 3 x 24V (15A)
- Internal Storage : Underbunk Fridge & Drawer, Overhead Lockers & Shelves and Door Pockets
- Doors & Windows: Remote Central Locking & Electric Windows
- Gauges: Speedometer with Odometer, Tachometer, Fuel Level, AdBlue Level, Water Temperature
- Digital Information Display: Yes
- Adjustable Steering Column: Yes (Telescopic & Tilt)
Dimensions & Weight
- Wheelbase: 3975mm (3300+1350)
- Overall Length: 7135mm
- Overall Width: 2550mm
- Overall Height: 3950mm
- Wheel Track: 2320mm (Front) | 2430mm (Rear)
- Rear Frame Height: 1120mm
- Kerb: 9090kg
- GVM: 26000kg
- GCM: 75000kg
- Chassis Frame: Longitudinal Beam High Strength Steel
- Dimensions: 286/285* x 80 x 8mm*(Front/Rear)
- Rear Frame Width: 850mm
- Tensile Strength: 610MPa
Warranty
- Standard Vehicle Warranty: 3 Years/300,000kms (T&C’s apply)
- Extended Vehicle Warranty: 2 Years/200,000kms (T&C’s apply)
