Aumark S BJ1088

Powered by Cummins – Driven by Foton

The Aumark S BJ1088 is powered by a Cummins ISF3.8L engine and features the longest wheelbase in our Aumark S range of 3800mm.

It’s available in two GVM options – 5995kg or 8995kg – which gives buyers the flexibility of driving it on a standard Class 1 licence or maximising its payload capacity with the Class 2 option. This makes the BJ1088 a truly versatile workhorse.

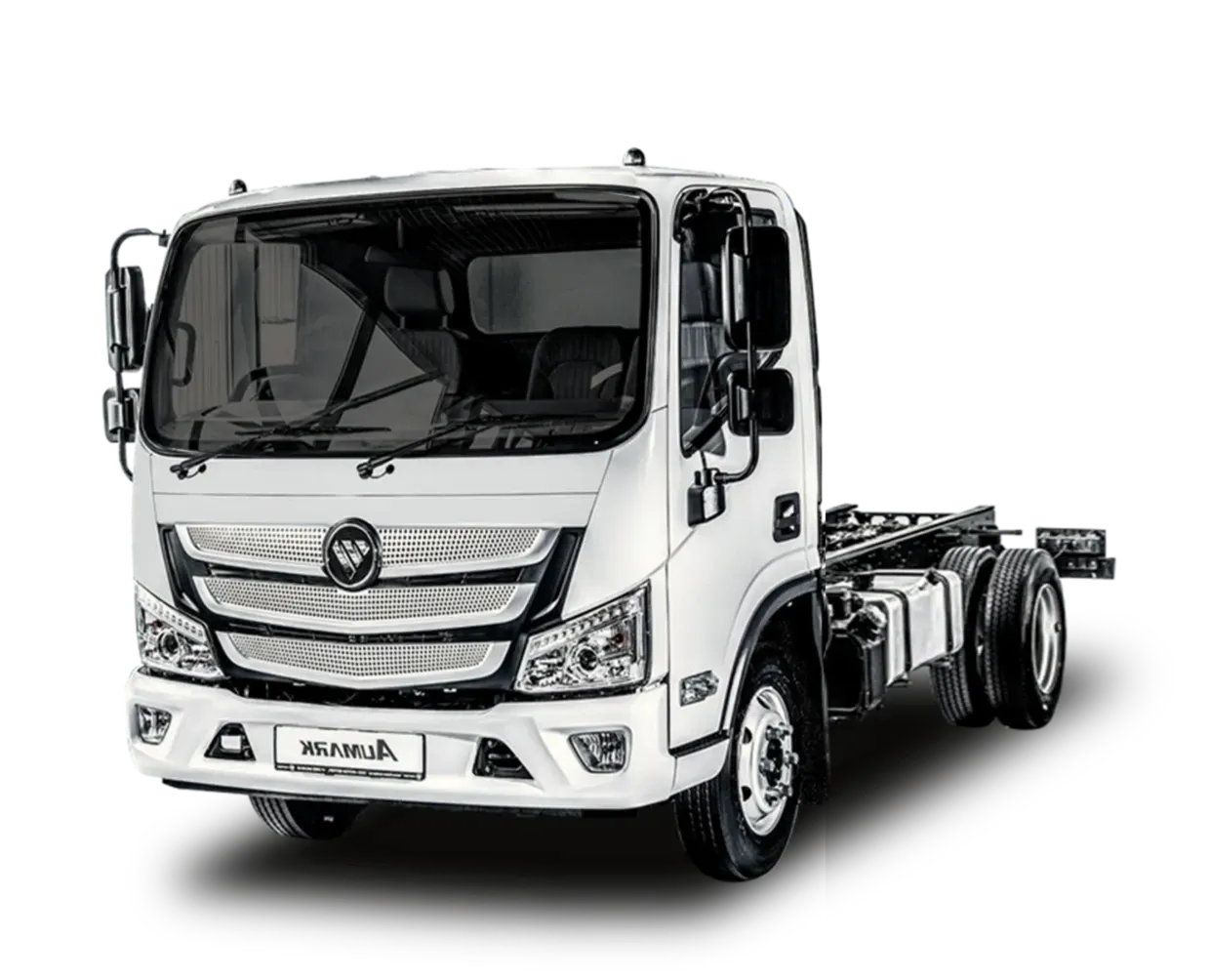

Choose from one of our Foton Job Ready bodies – Flat Deck, Tipper, Box Body, Chiller, Curtainsider, or Recovery – or opt for a cab chassis to suit a custom-built solution. Enquire about availability below.

Make an Enquiry
Models
Gvm
GVM/GCM

8995kg/12495kg

power
Power

115kW/2600rpm

Torque
Torque

500Nm/1200-2200rpm

Transmission
Transmission

ZF 6-Speed AMT

Brakes
Brakes

Airbrakes

Emission
Emission Standard

EU6

Electric
Vehicle Electrics

24V

Variants
Job Ready™ Variants

Tipper, Tray, Box Body, Chiller, Curtainside & Recovery

SPECIFICATIONS

Overview

Overview
  • GVM: 8995kg
  • GCM: 12495kg
  • Wheelbase: 3800mm
  • Axle Configuration: 4 x 2 Rigid
  • Transmission: ZF 6-Speed AMT
  • Engine Type: Cummins F3.8
  • Fuel Type: Diesel
  • Cab Type: Wide Cab (ECE R-29 Certified)
  • Number of Seats: 3
  • Emission Standard: Euro 6e
  • Maximum Power: 115kW @ 2600rpm
  • Maximum Torque: 550Nm @1200-1900rpm
  • Brake System: Air

Performance

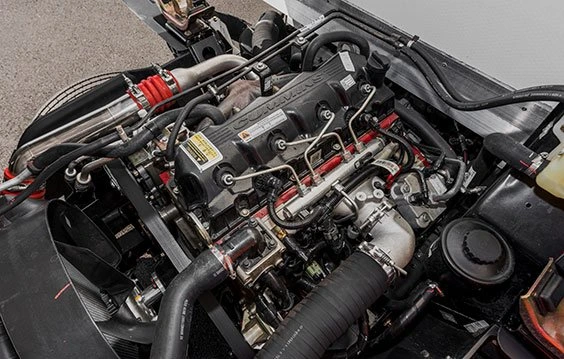

Engine and Transmission
  • Engine Type: Cummins F3.8EVIE156
  • Emission Certification: Euro 6e
  • Cylinder Arrangement: 4 x In-line with Turbo Intercooler
  • Displacement: 3802cc
  • Maximum Power: Cummins 115kW @ 2600rpm
  • Maximum Torque: 550Nm @1200-1900rpm
  • Fuel Injection System: Bosch Common Rail
  • Driving Modes: Economy/Power, Crawl & Snow
  • Engine Features: Idle Up (via steering wheel cruise control)
  • Fuel Type: Diesel
  • Fuel Tank: 160L Aluminium Alloy
  • Transmission Type: ZF 6S558TO 6-Speed AMT
Axle, Brakes and Suspension

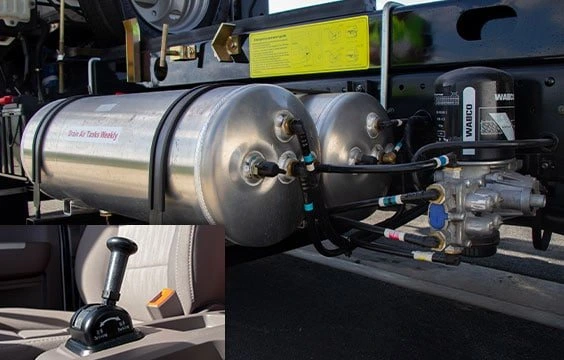

  • Brake System: Air + ABS, ASR, ESC, EBS, EPB, ABH, AEBS, FCW, LDWS

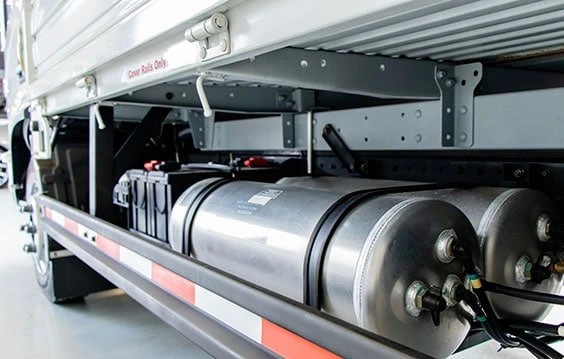

  • Air Tank Material: Aluminium Alloy
  • Brake Type – Front / Rear: Disc
  • Park Brake: Electronic Air
  • Suspension – Front: Multi-leaf + Stabiliser Bar
  • Suspension – Rear: Multi-leaf + Stabiliser Bar
  • Shock Absorbers: Double Acting
  • Front Axle Type: Forged & Stamped I-Beam
  • Front Axle Max. Capacity: 2850kg
  • Front Axle Tyre Capacity: 3400kg
  • Rear Axle Type: Banjo (Stamped & Welded Housing)
  • Rear Axle Max. Capacity: 6000kg
  • Rear Axle Tyre Capacity: 6400kg
  • Rear Axle Ratio: 4.3 : 1 / 4.778 : 1 (Tipper only)
  • Turning Circle: 15.5m
Wheels & Tyres
  • Wheel Rims: Steel
  • Wheel Size (Ø x W): 17.5″ x 6″
  • Tyre Size: 215/75 R17.5
  • Spare Wheel: Yes

Technology

Connectivity
  • Bluetooth®: Yes (Hands Free)
  • Connectivity & Charging: 1 x USB Port / 1 x SD Slot
  • Auxilary Power Outlet: 2 x 24V (15A)
Audio
  • Radio: AM/FM
  • Speakers: 2
  • Display Screen: LCD Touchscreen

Safety

Foton Safety Logic
  • Electronic Air Park Brake (EPB): Yes
  • Day Time Running Lights (DRL): Yes (LED)
  • Front & Rear Fog Lights: Yes
Active Safety Systems
  • Anti-lock Braking System (ABS): Yes
  • Lane Departure Warning (LDWS): Yes
  • Anti-Slip Regulator (ASR): Yes
  • Hill Start Assist / Auto-Hold: Yes
  • Electronic Stability Program (ESP): Yes
  • Autonomous Emergency Braking (AEB): Yes
Parking Assistance

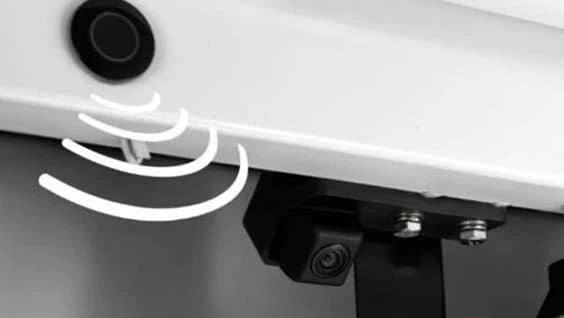

  • Reverse Camera: Yes
  • Reverse Sensors: Yes (specific Job ReadyTM variants only)
  • Reverse Buzzer: Yes
Other Safety Features
  • SRS Airbag: Yes (Driver & Passenger)
  • Rearview Camera: Yes (Alloy Box, Curtainside & Fridge only)
  • Drivers Seatbelt Warning: Yes
  • Doors Unlocked Warning: Yes

Exterior

Design Features
  • Cab Type: Wide Cab (ECE R-29 Certified)
  • Cab Tilt: Forward Control Manual Tilt Function

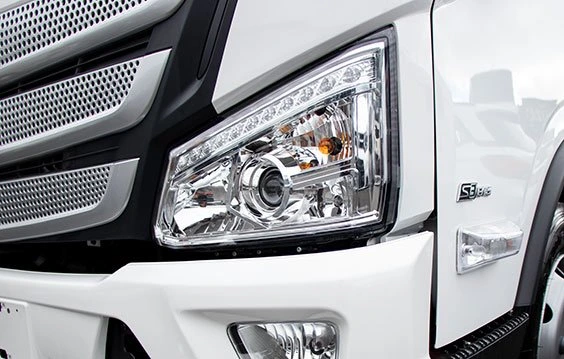

Front Lighting
  • Headlights: Auto Sensing, Adjustable Integrated Halogen
  • Front & Rear Fog Lights: Yes
  • Day Time Running Lights (DRL): Yes (LED)
  • Side Turn Light + Corner Lamp: Yes
  • Roof Clearance Lights: Yes (LED)
Other Features

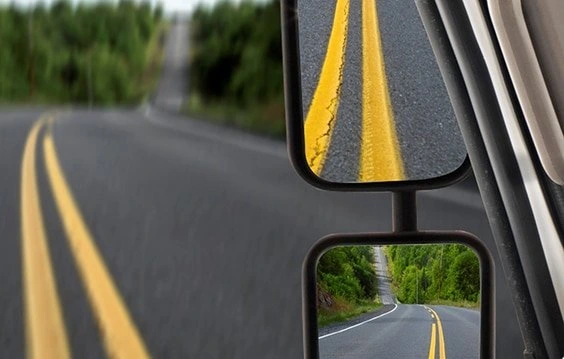

  • Exterior Mirrors: 6 (4 x Side / 1 x Spotter / 1 x Curb)
  • Exterior Storage: Toolbox (Tipper, Curtainsider & Recovery only)
  • Illuminated Door Step: Yes (LH & RH)
  • Other Accessories: Air Deflector (Box Body, Curtain & Chiller only)

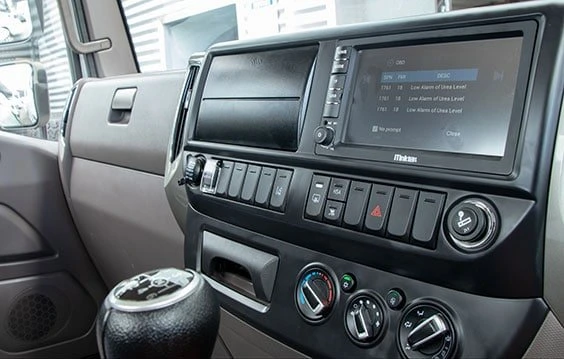

Interior

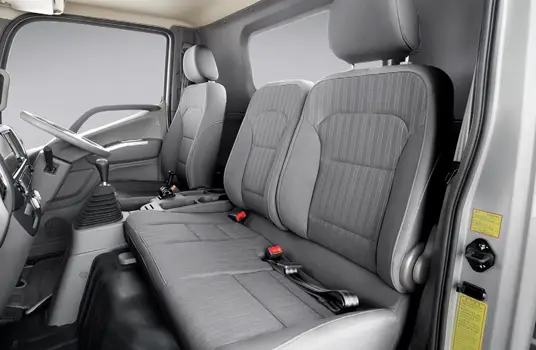

Seating
  • Seating: 3
  • Seat Material: Fabric
  • Seat Adjustment: Manual Slide and Recline Adjustments
Convenience Features

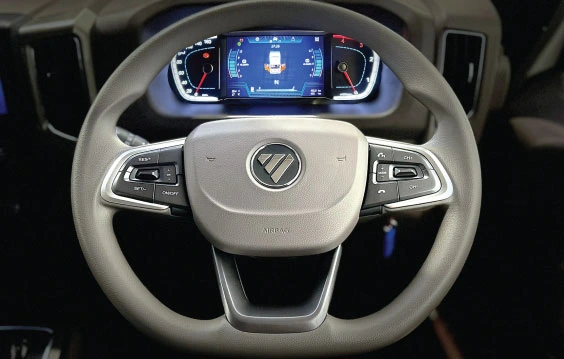

  • Steering Wheel Controls: Audio/Bluetooth/Cruise Control
  • Connectivity & Charging: 1 x USB Port / 1 x SD Slot
  • Auxilary Power Outlets: 2 x 24V (15A)

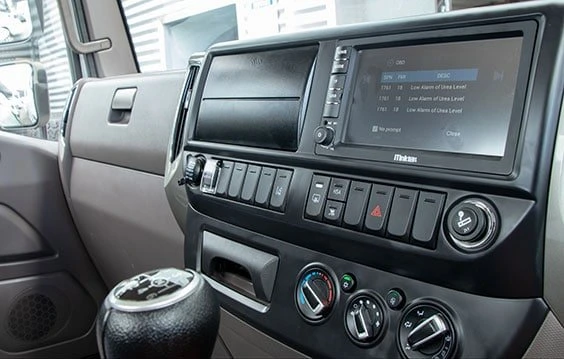

  • Internal Storage : Centre Console, Overhead Shelves and Door Pockets

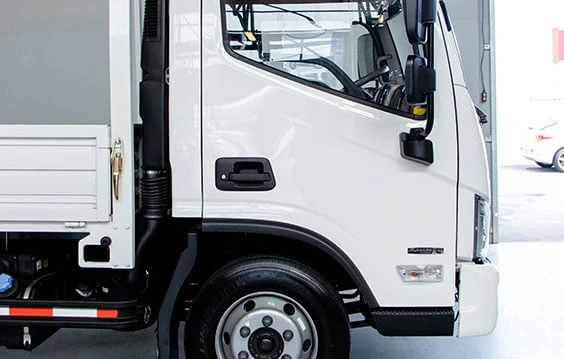

  • Doors & Windows: Remote Central Locking & Electric Windows
Instruments
  • Gauges: Speedometer with Odometer, Tachometer, Fuel Level, AdBlue Level, Water Temperature
Other Features
  • Height Adjustable Seat Belt: Yes (Driver-side only)
  • Adjustable Steering Column: Yes (Telescopic & Tilt)
  • Engine Idle Up Function: Yes (Steering Wheel Cruise Control Button)

Dimensions & Weight

Dimensions
  • Wheelbase: 3800mm
  • Overall Length: 6965mm
  • Overall Width: 2270mm
  • Overall Height: 2350mm
  • Wheel Track: 1730mm (Front) | 1615mm (Rear)
  • Rear Frame Height: 863mm
Weights
  • Kerb: 2950kg
  • GVM: 5995kg (Class 1) | 8995kg (Class 2)
  • GCM: 12495kg
Chassis
  • Chassis Frame: Longitudinal Beam High Strength Steel
  • Dimensions: 180 x 65 x 4.5mm
  • Rear Frame Width: 800mm
  • Tensile Strength: 510-650MPa

Warranty

Warranty
  • Standard Vehicle Warranty: 3 Years/160,000kms (T&C’s apply)
  • Job Ready™ Body Warranty: 1 Year (T&C’s apply)

Choose Your Foton Job Ready™

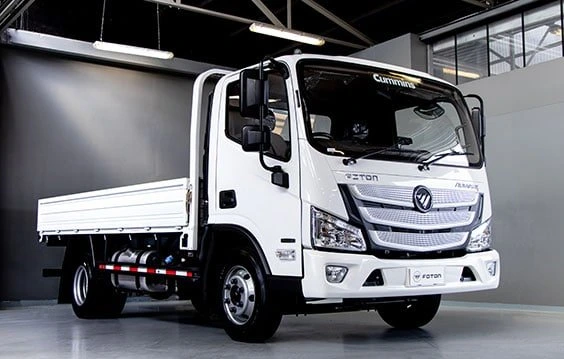

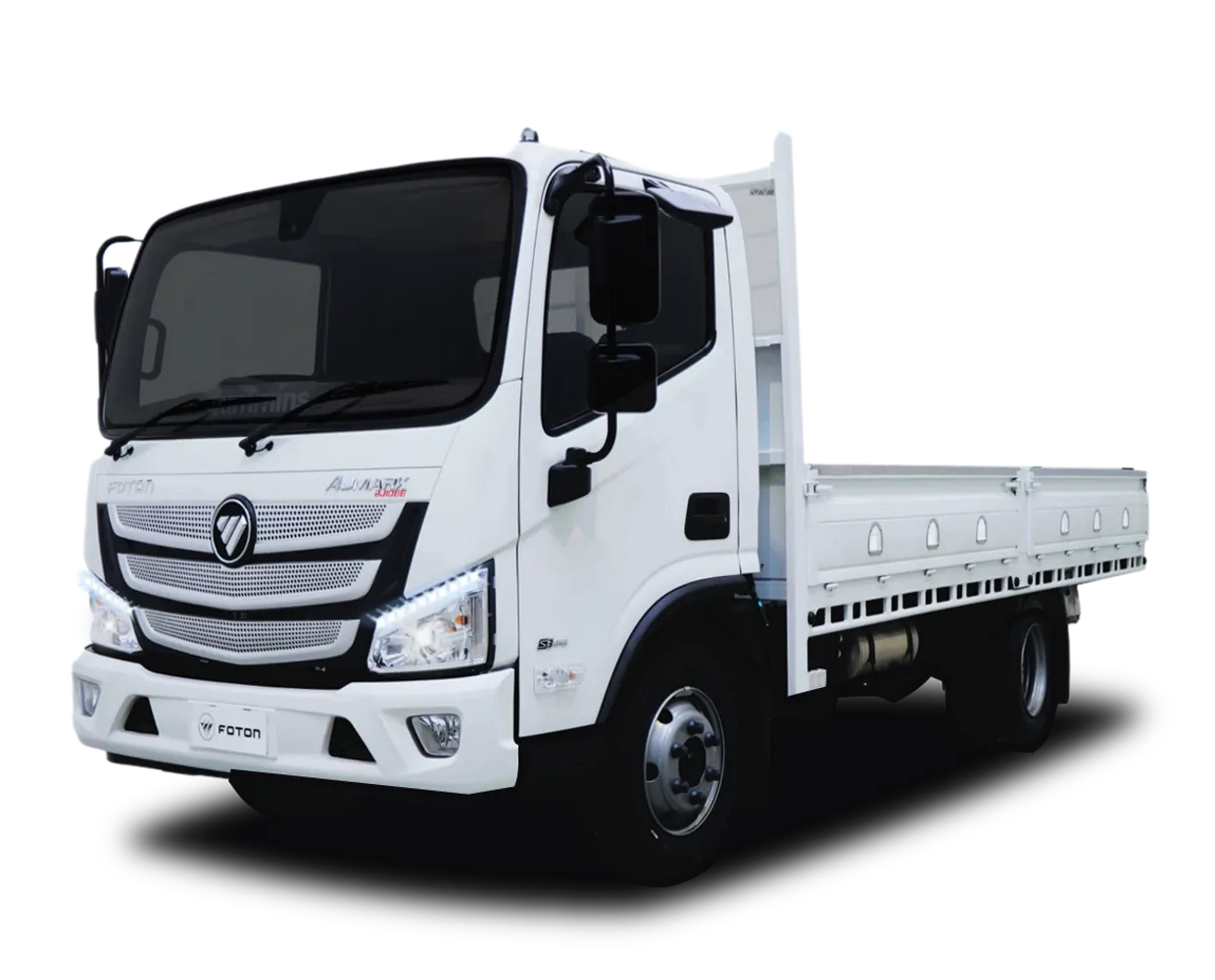

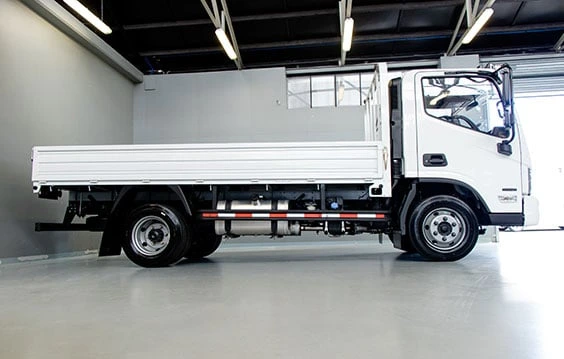

FLAT Deck

Features
  • Powdercoated Finish
  • Four Corner Steps
  • Drop-sides (LH & RH)
  • Rope Holes (each side)
  • Stainless Steel Rail Caps
  • Light Cover (Tarp) Hooks
Specifications
  • Kerb Weight: 3350kg
  • Max Payload: (2645kg (C1) | 5645kg (C2))
  • Inner Length: 5100mm
  • Inner Width: 2090mm
  • Tow Rating: 3500kg
Options
  • Certified Hooks/Rails
  • Certified Towbar
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Trans-Tex Ply Deck
  • Parkbrake Alarm

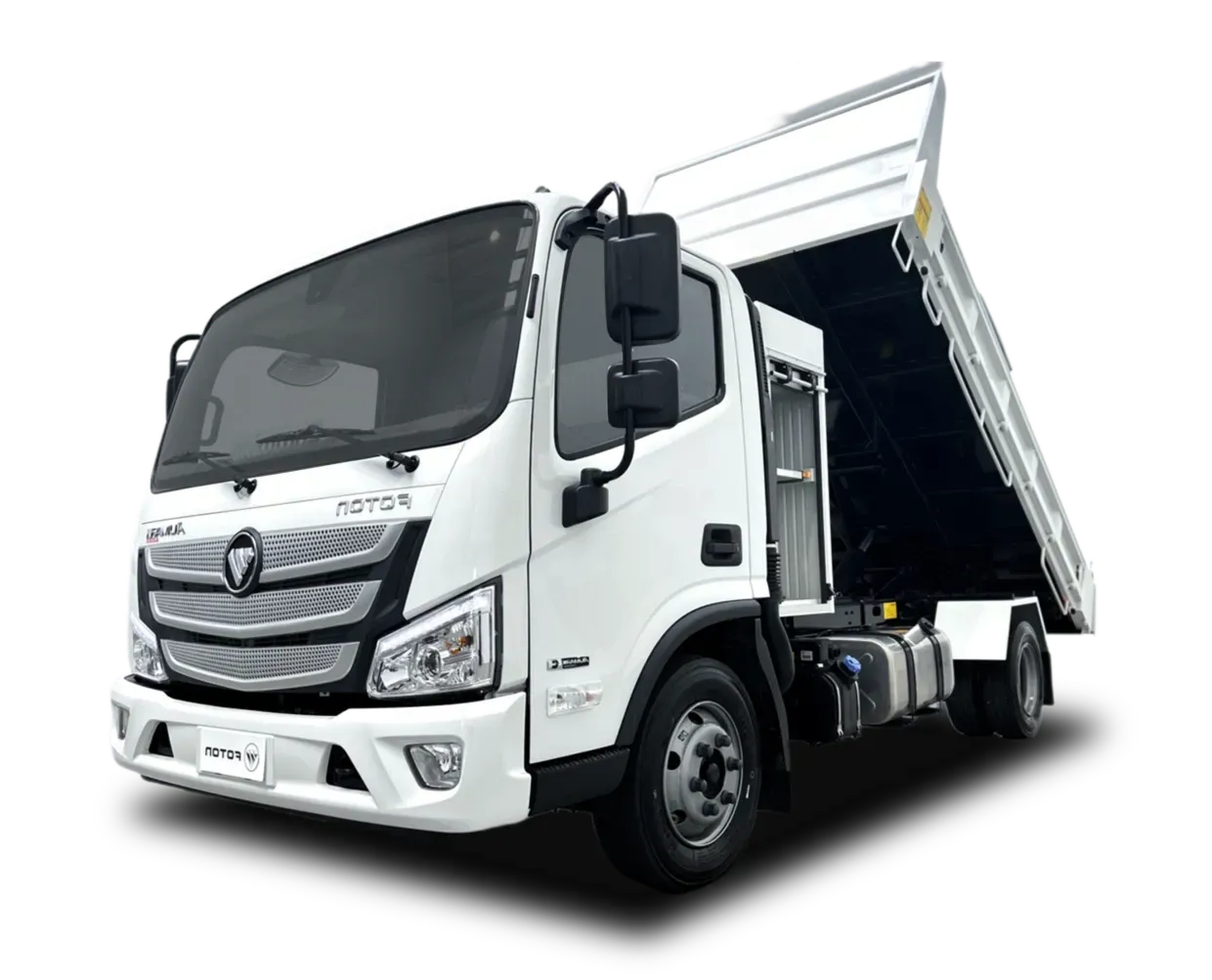

Tipper

Features
  • Push Button Activation
  • Cordless Remote Control
  • Underbody Hoist with Subframe
  • Steel Toolbox
  • Deck Lock
  • Drop-side Tray (LH & RH)
  • 3-way Opening Tailgate
  • Stainless Steel Rail Caps
  • Provision for Chain Spreader
  • Light Cover (Tarp) Rails
  • Rearview Camera
Specifications
  • Kerb Weight: 4510kg
  • Max Payload: (1485kg (C1) | 4485kg (C2))
  • Inner Length: 4100mm
  • Inner Width: 2090mm
  • Tow Rating: 3500kg
Options
  • Certified Hooks/Rails
  • Certified Towbar
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Parkbrake Alarm

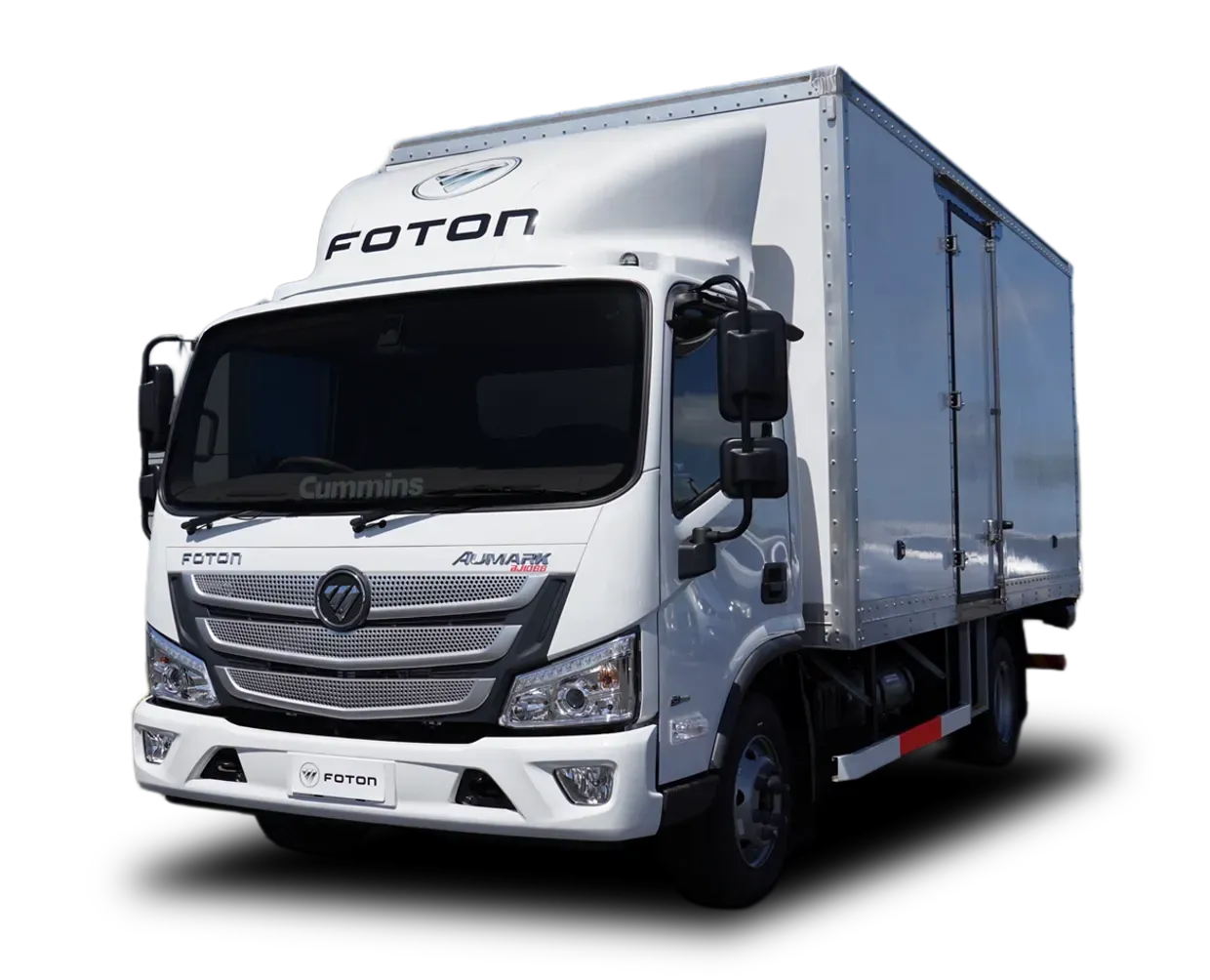

Box Body

Features
  • Powdercoated Finish
  • Aluminium Alloy Floor
  • Internal Battons & Rails
  • Double Rear Doors
  • Single Side Door
  • Stainless Locking Bars
  • Side Steps
  • Rearview Camera
  • Air Deflector
Specifications
  • Kerb Weight: 4670kg
  • Max Payload: 4325kg
  • Inner Length: 5190mm
  • Inner Width: 2200mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Carpeted Battons
  • Parkbrake Alarm

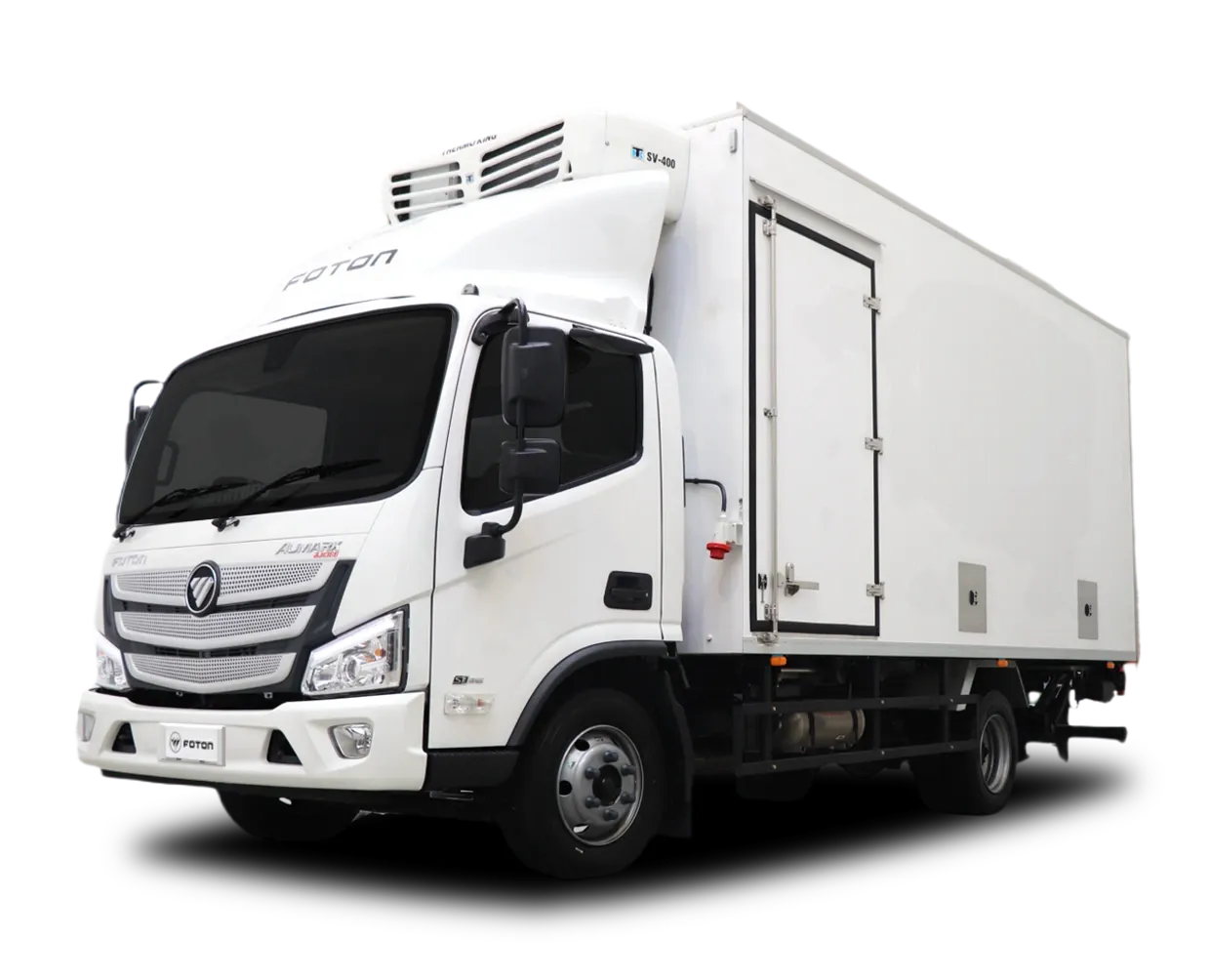

Refrigerated

Features
  • Thermo King SV-400
  • Aluminium Alloy Floor
  • Side Protection Plates
  • 3 Rows of Cargo Tracks
  • Double Rear Doors
  • Single Side Door
  • Stainless Locking Bars
  • Retractable Side Steps
  • Rear Curtain Wall
  • Rearview Camera
  • Air Deflector
Specifications
  • Kerb Weight: 5480kg
  • Max Payload: 3515kg
  • Inner Length: 5200mm
  • Inner Width: 2200mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Tail Lift (+/- Seal Kit)
  • Partitioning Wall
  • Stand-by Power
  • Parkbrake Alarm

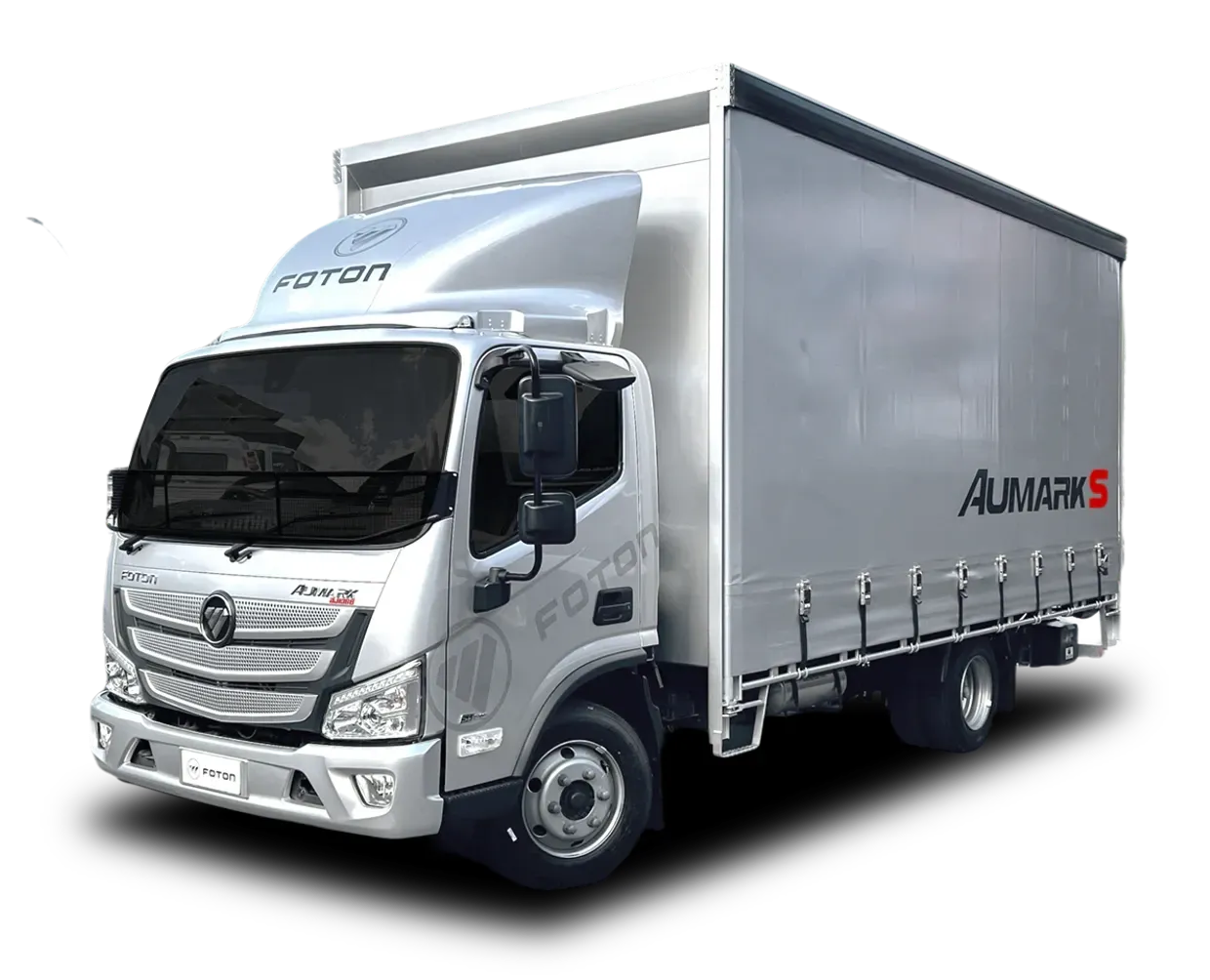

Curtainsiders

Features
  • White PVC Curtains
  • Trans-Tex Ply Floor
  • Certified Tie Rails
  • Underbody Toolbox
  • Rearview Camera
  • Air Deflector
  • 10 Pallet Floor Space
Specifications
  • Kerb Weight: 4540kg
  • Max Payload: 4455kg
  • Inner Length: 5100mm
  • Inner Width: 2500mm
  • Tow Rating: 3500kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Curtain Branding
  • Rear Solid Wall
  • Rear Roller Door
  • Rear Double Doors
  • Tail Lift (+/- Seal Kit)
  • Parkbrake Alarm

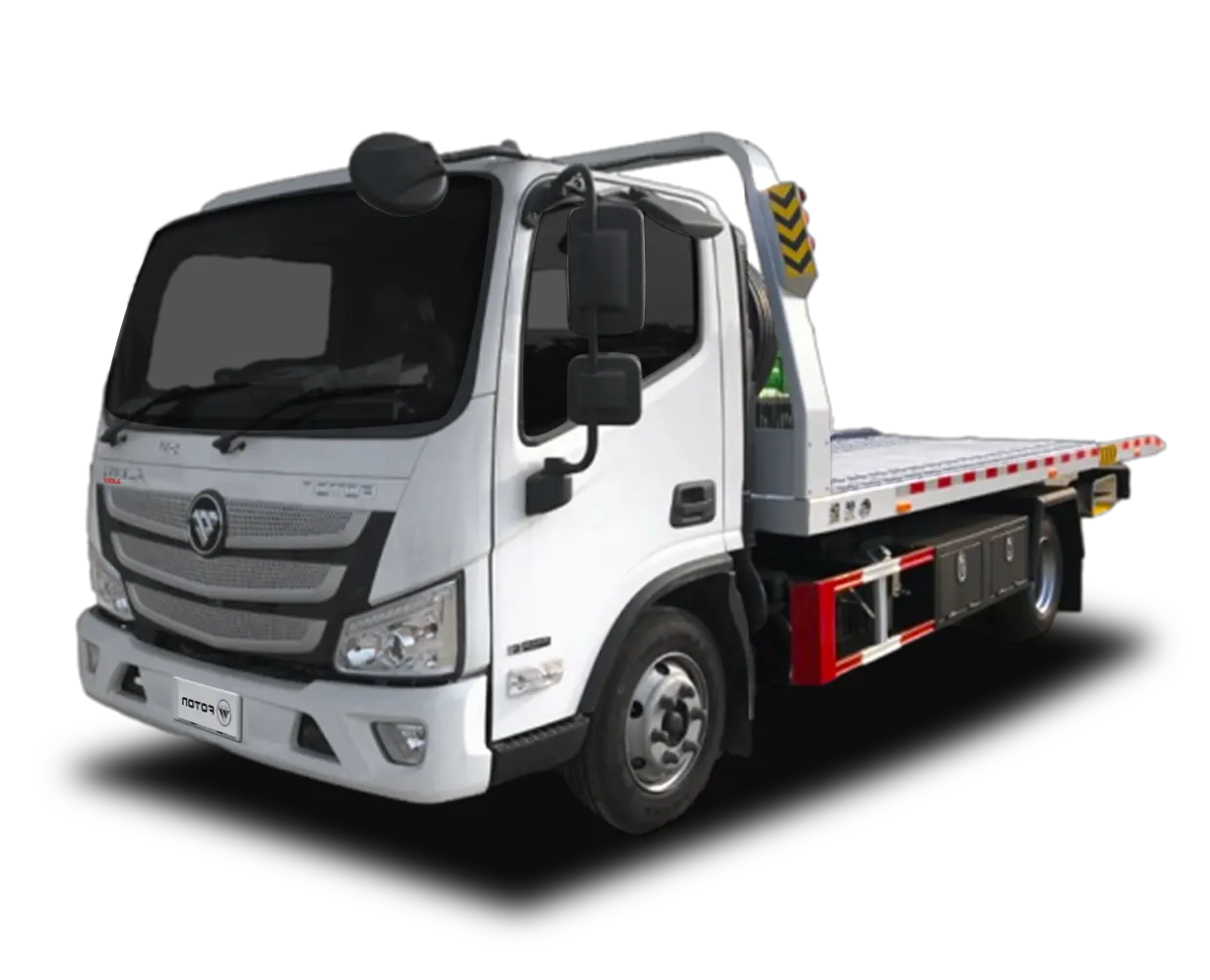

Recovery

Features
  • Tilting & Sliding Deck
  • 40kN Hydraulic Winch
  • LH & RH Side Controls
  • Cordless Remote Control
  • Underbody Toolbox
  • 2.7m Deck Slide Distance
  • 1.6m Towing Arm Length
  • 1.3m Towing Arm Extension
Specifications
  • Kerb Weight: 5620kg
  • Max Payload: 3000kg
  • Inner Length: 5550mm
  • Inner Width: 2220mm
  • Tow Rating: 3000kg
Options
  • Exterior Sunvisor
  • Stoneguard
  • Monsoons
  • Seat Covers
  • Parkbrake Alarm
