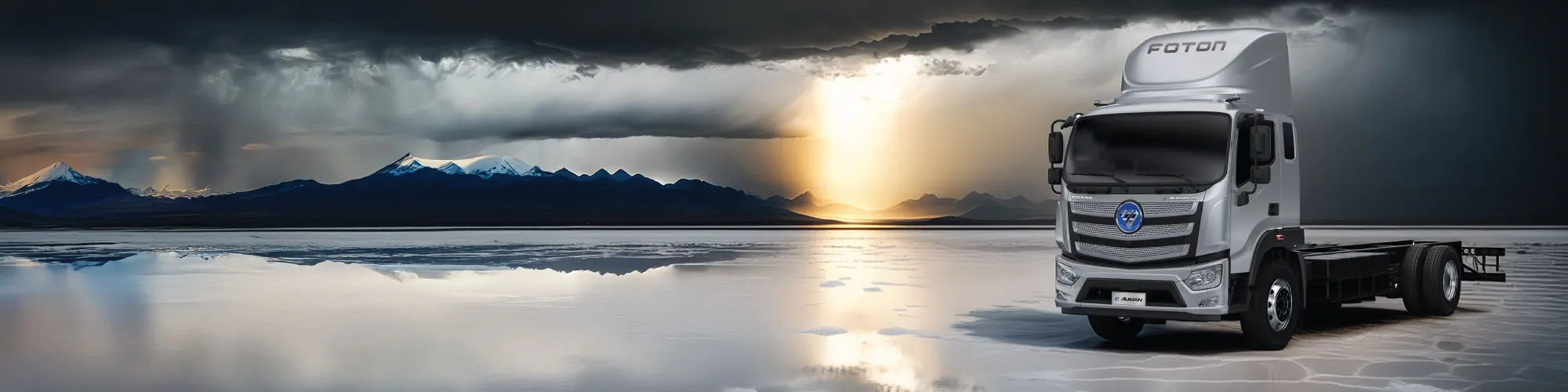

eAuman BJ1186EV
Powered by Innovation – Driven by Foton
The eAuman BJ1186EV is powered by a high-capacity electric motor and CATL battery system, delivering strong performance with zero emissions. With a 17,995kg GVM, wheelbase options of 4,500mm and 5,400mm, and an estimated range of up to 260km, it’s built for demanding applications such as logistics and waste transfer. This makes the BJ1186EV a powerful and future-ready solution for businesses needing serious capability.
DC fast charging takes the battery from 20% to 100% in around one hour, while AC charging is ideal for overnight operation. Regenerative braking improves efficiency and reduces wear, while an optional ePTO allows auxiliary equipment to be powered directly from the truck.
Advanced safety features, quiet operation, and a driver-focused cab with modern comfort and technology make the BJ1186EV as practical as it is efficient. Backed by a 5-year / 200,000km vehicle warranty and an 8-year / 400,000km battery warranty, it’s a long-term solution you can rely on.
Choose from our Foton Job Ready bodies: Tipper, Box Body, Chiller, Curtainsider, or opt for a cab chassis for a custom-built solution. Enquire about availability today.
Make an Enquiry

GVM/GCM
17995kg/21495kg

Power
380kW

Torque
TBC

Transmission
Dual Motors Direct Drive

Brakes
Airbrakes

Engine Type
Battery Electric

Job Ready™ Variants
Box-Body, Refrigerated, Curtainsiders & Tipper
SPECIFICATIONS

Overview
- GVM: 11995kg (De-rated) | 17995kg (Standard)
- Wheelbase: 4500mm | 5400mm
- Axle Configuration: 4 x 2 Rigid with e-Axle
- Engine Type: Battery Electric
- Transmission: Dual Motors Direct Drive
- Cab Type: Standard Cab | Extended Cab
- Number of Seats: 2 | 2
- Sleeping Capacity: – | 1 x Day Bed
- Maximum Power: 380kW
- Brake System: Air
Performance
- Maximum Speed: 90km / Hour
- Maximum Gradient: 25%
- Transmission Type: Dual Motors Direct Drive
- Power – Rated | Peak: 200kW | 380kW
- Speed – Rated | Peak: 1000rpm | 2800rpm
- Cooling System: Indirect Liquid Cooling
- Cooling Method: Electric Fan with Auxillary Water Tank
- Brand: CATL Lithium Iron Phosphate
- Type: 141kW Maintenance Free Batteries
- Configuration: Side layout (1 each side of the chassis)
- Charge Time – DC | AC: 2 Hours | 13 Hours
- Advertised Range: 260km (WLTP emulation)
- Main Brake System: Air + ABS / EBD / ESC / FCWS / AEB
- Main Brake Type – Front | Rear: Disc | Drum
- Auxilary Brake Type: Regenerative Braking
- Park Brake Type: Electronic Air (EAPB) + Parkbrake Alarm (PBA)
- Suspension – Front: Multi-leaf + Stabiliser Bar
- Suspension – Rear: Air Bag + ECAS + Stabiliser Bar
- Front Axle Type: Forged I-Beam
- Front Axle Max. Capacity: 7200kg
- Front Axle Tyre Capacity: 6500kg
- Rear Axle Type: Single Stage Deceleration
- Rear Axle Max. Capacity: 11500kg
- Rear Axle Tyre Capacity: 12000kg
- Rear Axle Ratio: 4.875
- Wheel Rims: Aluminium Alloy
- Wheel Size (Ø x W): 22.5″ x TBC
- Tyre Size: 275/80 R22.5
- Spare Wheel: Yes
Technology
- Bluetooth®: Yes
- Radio: AM/FM
- Speakers: 2
- Display Screen: LCD Touchscreen
Safety
- Electronic Air Park Brake (EPB): Yes
- Audible Park Brake Alarm (PBA): Yes
- Day Time Running Lights (DRL): Yes (LED)
- Front & Rear Fog Lights: Yes (LED)
- Roof Clearance Lights: Yes (LED)
- Acoustic Vehicle Alert System (AVAS): Yes
- Anti-lock Braking System (ABS): Yes
- Lane Departure Warning (LDWS): Yes
- Anti-Slip Regulation (ASR): Yes
- Hill-Start Assistance (HSA) / Auto Hold: Yes
- Electronic Stability Program (ESP): Yes
- Electronic Brake Distribution (EBD): Yes
- Forward Collision Warning (FCWS): Yes
- Reverse Camera: Yes
- Reverse Sensors: Yes
- Reverse Buzzer: Yes
- Cab Tilt Warning: Yes
- Drivers Seatbelt Warning: Yes
- Doors Unlocked Warning: Yes
Exterior
- Cab Type: Standard Cab | Extended Cab
- Cab Tilt: Hydraulic Forward Control Tilt
- Headlights: Auto Sensing, Adjustable Integrated Halogen
- Front & Rear Fog Lights: Yes
- Day Time Running Lights (DRL): Yes
- Roof Clearance Lights: Yes
- e-PTO Provisional: Yes
- e-PTO Power – Rated | Peak: 80kW | 160kW
- Exterior Mirrors: 5 (2 x Power Adjustable & Heated)
- Other Accessories: Air Deflector (Box Body, Curtain & Chiller only)
Interior
- Seating: 2
- Seat Material: Fabric
- Seat Adjustment: Manual Slide & Recline
- Steering Wheel Controls: Audio/Bluetooth/Cruise Control
- Internal Storage : Centre Console, Overhead Shelves and Door Pockets
- Doors & Windows: Remote Central Locking & Electric Windows
- Gauges: Speedometer with Odometer
- Digital Information Display: Yes
- Adjustable Steering Column: Yes
Dimensions & Weight
- Wheelbase: 4500mm | 5400mm
- Overall Length: 7970mm | 9570mm
- Overall Width: 2480mm
- Overall Height: 2780mm (Std Cab) | 2810mm (Ext Cab)
- Kerb: 6820kg (Std Cab) 6870kg (Ext Cab) | 6870kg (Std Cab) 6920kg (Ext Cab)
- Payload: 11175kg
- GCM: 11995kg (De-rated) | 17995kg (Standard)
- Chassis Frame: Stamped & Riveted Steel Beam
- Dimensions: 250 x 65/75* (6+4)
*(Front/Rear)
Warranty
- Standard Vehicle Warranty: 5 Years / 200,000kms
- CATL Battery Warranty: 8 Years / 300,000kms
Choose Your Foton Job Ready™

Box Body
- Powdercoated Finish
- Aluminium Alloy Floor
- Internal Battons & Rails
- Double Rear Doors
- Double Side Doors
- Stainless Locking Bars
- Side Step
- Rearview Camera
- Air Deflector
- 3-Point Contact System
- Kerb Weight – Std Cab: 7950kg | 8200kg
- Kerb Weight – Ext Cab: 8000kg | 8250kg
- Maximum Payload – Std Cab: 10045kg | 9795kg
- Maximum Payload – Ext Cab: 9995kg | 9745kg
- Inner Length: 4500mm | 6000mm
- Inner Width: TBC
- Inner Height: TBC
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Tail Lift (+/- Seal Kit)
- Carpeted Battons
- Parkbrake Alarm
Refrigerated
- Thermo King EUT1200
- Aluminium Alloy Floor
- Side Protection Plates
- 3 Rows of Cargo Tracks
- Double Rear Doors
- Double + Single Side Door
- Stainless Locking Bars
- Side Step
- Rear Curtain Wall
- Rearview Camera
- Air Deflector
- Kerb Weight – Std Cab: 9300kg | 9850kg
- Kerb Weight – Ext Cab: 9350kg | 9900kg
- Maximum Payload – Std Cab: 8695kg | 8145kg
- Maximum Payload – Ext Cab: 8645kg | 8095kg
- Inner Length: 4500mm | 6000mm
- Inner Width: TBC
- Inner Height: TBC
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Tail Lift (+/- Seal Kit)
- Partitioning Wall
- Stand-by Power
- Parkbrake Alarm
Curtainsiders
- White PVC Curtains
- Trans-Tex Ply Floor
- Certified Tie Rails
- Underbody Toolbox
- Rearview Camera
- Air Deflector
- 12/14 Pallet Floor Space
- Kerb Weight – Std Cab: 8550kg | 8900kg
- Kerb Weight – Ext Cab: 8600kg | 8900kg
- Maximum Payload – Std Cab: 9445kg | 9095kg
- Maximum Payload – Ext Cab: 9395kg | 17105kg
- Inner Length: 4500mm | 6000mm
- Inner Width: TBC
- Inner Height: TBC
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
- Curtain Branding
- Rear Solid Wall
- Rear Roller Door
- Rear Double Doors
- Tail Lift (+/- Seal Kit)
- Parkbrake Alarm
Tippers
- Push Button Activation
- Cordless Remote Control
- Front-of-body Hoist
- Toolbox
- Deck Lock
- 3-way Opening Tailgate
- Stainless Steel Rail Caps
- Provision for Chain Spreader
- Light Cover (Tarp) Rails
- Parkbrake Alarm
- Kerb Weight – Std Cab: 9350kg | 9900kg
- Kerb Weight – Ext Cab: 9400kg | 9950kg
- Maximum Payload – Std Cab: 8645kg | 8095kg
- Maximum Payload – Ext Cab: 8595kg | 8045kg
- Inner Length: 4500mm | 6000mm
- Inner Width: 2285mm
- Inner Height: 450mm
- Certified Hooks/Rails
- Exterior Sunvisor
- Stoneguard
- Monsoons
- Seat Covers
